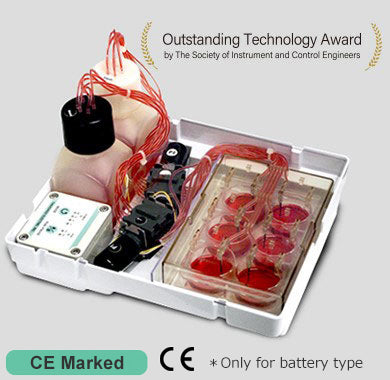

Portable Medium Replacement System

from $1,460.00 USD

RP-QⅡ & QⅢ Series [Discharge Rate: 0.45 - 3.0 mL/min]

from $63.50 USD

Model Number	Discharge Rate*	Tube Material
RP-QⅡ1.5S-P90Z	0.90 mL/min	Silicone
RP-QⅡ1.2C-P45Z	0.45 mL/min	SWFT
RP-QⅡX1.5S-2P2Z	2.20 mL/min	Silicone
RP-QⅡX1.2C-1P2Z	1.20 mL/min	SWFT
RP-QⅡX1.5S-3A	3.00 mL/min	Silicone
RP-QⅢ1.5S-P90Z	0.90 mL/min	Silicone
RP-QⅢ1.2C-P45Z	0.45 mL/min	SWFT
RP-QⅢX1.5S-2P2Z	2.20 mL/min	Silicone
RP-QⅢX1.2C-1P2Z	1.20 mL/min	SWFT
RP-QⅢX1.5S-3A	3.00 mL/min	Silicone

Note 1: Specifications etc. may be changed at any time without notice.

Note 2: This is a product from Aquatech Co., Ltd..

*: ±20%, water is at 20℃.

MECHANISM OF THE RING PUMP



*Note: Visual diagram above is from Aquatech Co., Ltd.

VIDEO OF THE RP-Q SERIES



1. You can learn about the Mechanism of the micro peristaltic pump here.
2. Please feel free to contact us for more information about this product.

-->

RP-TX Series [Discharge Rate: 0.03 - 40 μL/min]

from $318.50 USD

Model Number	RP-TXP5S-P04A-DC3VS	RP-TXP5S-P04L-DC3VS	RP-TXP5F-P03A-DC3VS
Discharge Rate *1	0.03 ~ 40 μL/min ±20%		0.03 ~ 30 μL/min ±20%
Tubing Material	Silicone		Olefine
Autoclave Sterilizable	N/A		N/A
Maximum Pump Pressure	≥30 kPa
Motor	2-Phase Bipolar-Type Stepper Motor
Tubing Size	I.D. 0.5 x O.D. 1.5 mm
Rated Voltage	3 V DC
Ambient Temperature Range	5～45 ˚C (May be used in Incubators *2)
Power Consumption	350 mV
Self-Priming	Possible
Pump Head Replacement	Possible
Outer Dimensions	33 x 12 x 21.5 mm
Weight	9.1 g

Note: Specifications etc. may be changed at any time without notice.

*1 Note: Water at 25 ˚C, Pulse speed: 1~1000 pps.

*2 Note: Prevent condensations from forming.

MECHANISM OF THE RING PUMP



*Note: Visual diagram above is from Aquatech Co., Ltd.

REPLACEMENT PUMP HEADS

	Silicone	Olefine
Standard	AR-TBS0.5X1.5-K	AR-TBF0.5X1.5-K
Autoclave Sterilizable	AR-TBS0.5X1.5-K5	N/A

Note: Specifications etc. may be changed at any time without notice.



1. You can learn about the Mechanism of the micro peristaltic pump here.
2. Please feel free to contact us for more information about this product.

-->

Pen-Type Syringe Pump - SBP Series

from $1,030.00 USD

RP-Q Series [Discharge Rate: 0.2 - 1.1 mL/min]

from $58.00 USD

Model Number	Discharge Rate*	Tube Material
RP-Q1.5S-P45Z	0.45 mL/min	Silicone
RP-Q1.2N-P20Z	0.20 mL/min	Norprene®
RP-Q1.2C-P20Z	0.20 mL/min	SWFT
RP-QX1.5S-1Z	1.10 mL/min	Silicone
RP-QX1.2N-P50Z	0.50 mL/min	Norprene®
RP-QX1.2C-P50Z	0.50 mL/min	SWFT

Note 1: Specifications etc. may be changed at any time without notice.

Note 2: This is a product from Aquatech Co., Ltd..

*: ±20%, water is at 20℃.

MECHANISM OF THE RING PUMP



*Note: Visual diagram above is from Aquatech Co., Ltd.

VIDEOS OF THE RP-Q SERIES



1. You can learn about the Mechanism of the micro peristaltic pump here.
2. Please feel free to contact us for more information about this product.

-->

Piezoelectric Micro Pump - Cartridge Type

from $163.00 USD

Piezoelectric Micro Pump - Large Flow Type

from $132.50 USD

Piezoelectric Micro Pump - Built-In Driver-Type

from $118.00 USD

Piezoelectric Micro Pump - Standard Series

from $92.50 USD

Highly Inert Piezoelectric Micro Pump - APP Series

from $178.00 USD
