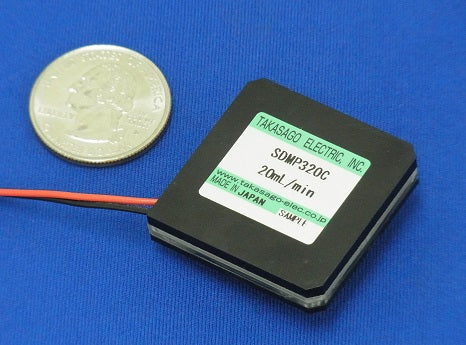

Piezoelectric Micro Pump - Cartridge Type

$235.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

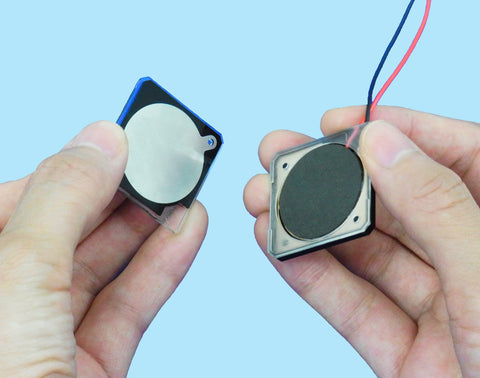

A built-in magnet enables the pump cartridge to be easily removed from and attached to an actuator with a piezoelectric element. This feature makes the pump sanitary since it can exchange the cartridge according to the fluid type or sterilize it before use.

  1. Sterilization of the pump cartridge before use is possible.
  2. Wetted materials contain no metal substances.
  3. Self-priming is possible.
  4. Flow rate is adjustable by changing drive voltage or drive frequency.
  5. Small in size, lightweight, and slim.
  6. This pump produces low noise and low power consumption.
  7. Note: Details such as specifications, etc., may be changed without notice.

    *:Conditions: 250VP-P 40Hz (Sine Wave), Fluid 25°C Water, Tubing I.D.: 3/32in (Length 40 mm)


    For this pump, there is a dedicated controller or driver that is required to operate this pump:

    1. Controller [MPC-200B]
    2. Driver [MPD-200A]

    We do also have a pump with a built-in driver available:

    1. Piezoelectric Micro Pump - Built-In Driver-Type

    VIDEO OF PIEZOELECTRIC MICRO PUMP - CARTRIDGE TYPE


    Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SDMP320C
Outer Dimensions 33 x 33 x 6.9 mm
Method Piezoelectric Diaphragm Pump
Pump Method Diaphragm
Type Piezoelectric Diaphragm Pump
Port Connection Hose Barb
Ambient Temperature Range

5~50 °C

Rated Voltage Drive Voltage: 60-250 Vp-p
Drive Frequency: 10 - 60 Hz
Power Consumption

36 mW

Body Material COC (Cyclic Olefin Copolymer), EPDM
Other Wetted Materials COC (Cyclic Olefin Copolymer) or EPDM (Ethylene Propylene Diene Monomer)
Self-Priming Possible
Flow Rate 20 mL/min
Discharge Pressure

20 kPa

Weight Approximately 13 g
Controller MPC-200B
Driver Board MPD-200A
Notes
Suction Load Pressure -1.0 kPa (Typical)

Note: Details such as specifications, etc., may be changed without notice.
