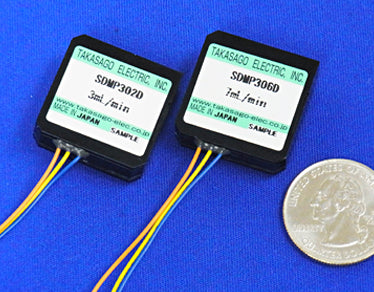

Piezoelectric Micro Pump - Built-In Driver-Type

$118.00 USD

Variation
Quantity
INQUIRY
pdfpdfView Piezoelectric Micro Pump - Built-In Driver-Type Drawing PDF

FEATURES / CHARACTERISTICS

This miniature diaphragm pump is driven by a piezoelectric element and its driver board is built-in into the pump. It enables the pump to deliver a constant flow rate by operating the pump with constant voltage and constant frequency signal generated by supply of a direct current voltage. The pump can be operated or stopped by inputting an electrical signal into the pump control signal lines.

Note: Details including specifications, etc. may be changed without notification.

*Note: This micro pump is designed for pumping liquid.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SDMP302D / SDMP306D
Outer Dimensions 25 x 25 x 8.2 mm
Method Piezoelectric Diaphragm Pump
Pump Method Diaphragm
Type Piezoelectric Diaphragm Pump
Port Connection Hose Barb
Ambient Temperature Range 5~50°C
Rated Voltage 5 V DC
Body Material COC (Cyclic Olefin Copolymer), EPDM
Other Wetted Materials COC (Cyclic Olefin Copolymer) or EPDM (Ethylene Propylene Diene Monomer)
Self-Priming Possible
Pumped Volume Adjustable Range SDMP302D: 3 mL/min
SDMP306D: 7 mL/min
Maximum Pumped Pressure 40 kPa
Weight Approximately 4 g
Remarks Suction Load Pressure: -1.0 kPa (Typical)
Notes

*Note: Details such as specifications, etc. may be changed without notice.
