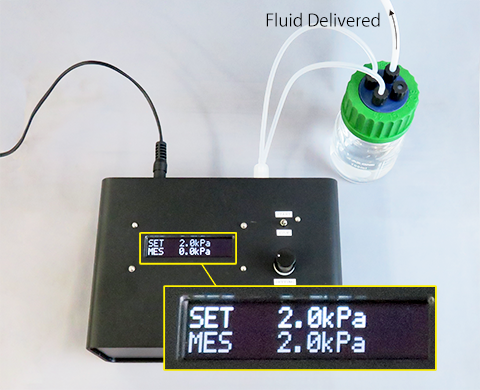

Compact Pressure Driven Flow System

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

Accurate and Pulsation-Free Fluid Delivery with a Compact Package

DEVELOPMENT CONCEPT

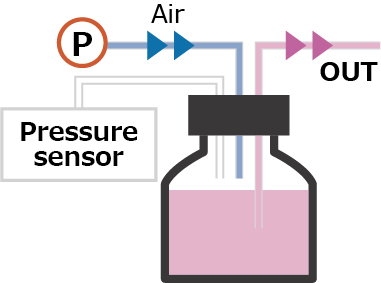

  1. Accurate and pulsation-free fluid delivery with pressure feedback function.
  2. Compact system by utilizing our miniature-sized pump.
  3. Useable anywhere without a pressure source.
  4. Customizable flow rate or pressure.

APPLICATIONS

Drug delivery systems, High precision measurement, Perfusion, Cell Sorter, etc.

FLOW RATE - PRESSURE

Flow Rate - Pressure of Compact Pressure Driven Flow System

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: This graph represents average measurement values under the following conditions:
100 mL bottle capacity, 50 mL liquid volume, pure water as media connected to I.D. 0.25 mm PEEK tubing. These values are representative values and not guaranteed values.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions 110[W] x 70[L] x 56[H] mm
Operating Pressure 0~10 kPa
Notes
Pressure Control 0.1 kPa
Feedback ± 0.1 kPa

Note: Details such as specifications, etc., may be changed without notice.
