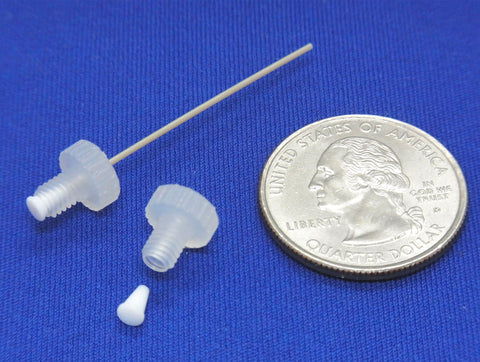

Capillary Tube Fittings - CJ Series

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Pressure capability of -90~700 kPa at temperature range of 5~60°C
  2. Flat bottom seal design that enables easier machining on female port compared to tapered seal design.
  3. Customization to meet customer's needed tubing diameters is possible.

Note: Details including specifications, etc. may change at anytime without notification.

HOW TO CONNECT

Capillary Tube Fittings how to connect

Note 1: Details including specifications, etc. may change at anytime without notification.

Note 2: You can connect this fitting to a female port by simply screwing it into the port after a capillary tube is inserted into the seal joint and the male connector.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number Capillary Tube Fittings
Type Fittings
Notes
Model Number CJM4-0375 CJM6-1/32
Tubing Outer Diameter 0.375 mm 1/32 inch
(0.79 mm)
Tubing Inner Diameter 0.1-0.15 mm 0.012-0.016 inch
(0.3-0.4 mm)
Seal Joint Inner Diameter 0.2 mm 0.4 mm
Port Connection M4 M6

Note: Details including specifications, etc. may change without notification.
