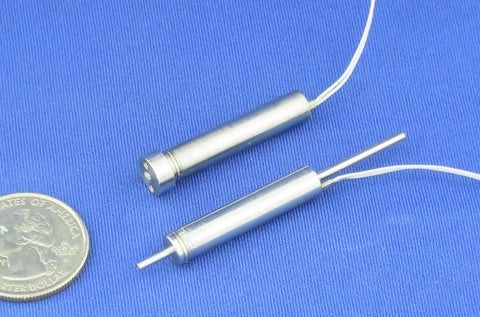

High Pressure Ultra-Small Solenoid Valve - HVA/HVAL Series

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

For Satellite Propulsion Systems/Thrusters

  1. 2 MPa pressure rating.
  2. Compact and lightweight.
  3. ISO19683 vibration and shock requirements met (HVA-2-MFF).
  4. Latching type (HVAL series) provides an option with low power consumption for a longer open state.

Please feel free to learn more about our other products that are similar to this valve:

  1. High Pressure Solenoid Valve - HVC Series
  2. High Pressure Ultra-Small Solenoid Valve - HVD/HVDL Series

Please feel free to contact us to discuss more details about the HVA and HVAL series.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number HVA-2-MFF / HVA-2-N1F / HVAL-2-N1F
Outer Dimensions Diameter 6.2-8 x L34-58 mm
Type 2-way (NC) or Latching
Port Connection Gasket (Manifold Mount) or Pipe
Orifice（mm） 0.4 mm
Fluid Temperature Range 0~70˚C*
Rated Voltage 12 VDC
Operating Pressure 0~2 MPa (Inlet Port)
Seal Material FKM (Optionally FFKM, PTFE)
Weight 8 g
Notes
Model Number HVA-2-MFF HVA-2-N1F HVAL-2-N1F
Solenoid Type 2-way (Normally Closed) Latching
CV Value 0.0035 0.0040
Port Connection Gasket (Manifold Mount) Pipe
Holding Voltage 3 VDC N/A
Power Consumption Rated Voltage 6.5 W 7 W
Holding Voltage 0.4 W N/A
Duty Cycle Rated Voltage Intermittent
ED: 30%
Maximum On Time: 1.0 s		 Intermittent
ED: 20%
On Time: 0.05 ~ 0.1 s
Holding Voltage Continuous N/A
Outer Dimensions Diameter 8 x L34 mm Diameter 6.2 x L58 mm

Note: Details such as specifications, etc., may be changed without notice.

*: The temperature range may change depending on the sealing material.
