Palmtop Size Syringe Pump - SCP Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

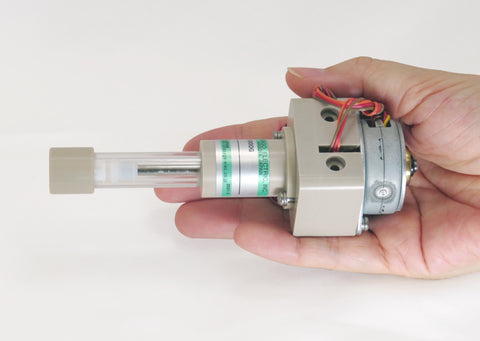

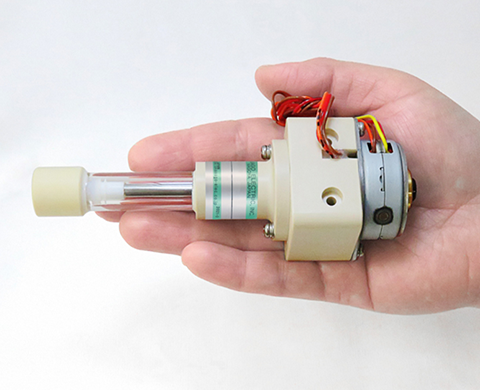

This palmtop-sized pump with a built-in motor is smaller and lighter than conventional syringe pump systems and offers reasonable pricing. The fluid is discharged when the motor shaft moves in the direction of the piston’s movement. It features zero dead volume when compared to similar-sized plunger pumps. Disposable syringe types can be developed.

For more details or questions about this palmtop-sized syringe pump, don't hesitate to get in touch with us for information.

Note: Details such as specifications, etc., may be changed without notice.


We also have a similar product to this pump, it's called:

  1. Pen-Type Syringe Pump - SBP series

Controller to use for the Palmtop Size Syringe Pump (SCP Series):

  1. Syringe Pump Controller [SXPC-01] for SBP/SCP Pumps

VIDEO OF THE PALMTOP SIZE SYRINGE PUMP - SCP SERIES


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SCP-1000G-M6(1/4U)F-2 , SCP-1000G-M6(1/4U)FC-2

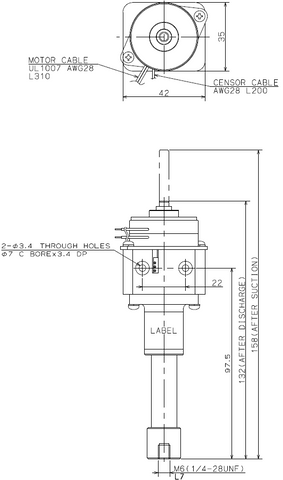

Outer Dimensions 35 x 42 x L132 mm (After Discharge)
(*After Suction: L158 mm)
Method Syringe Termination: 1/4-28UNF or M6
Motor 2-Phase Bipolar Stepper Motor
Pump Method Small Syringe Pump
Type Palmtop Size Syringe Pump
Ambient Temperature Range 20 ~ 50 °C
Other Wetted Materials Glass and PTFE
Capacity 1,000 μL
Theoretical Resolution At full step: 0.38 μL
Flow Rate Range 152 μL/s
Repeat Precision CV < 1% (Full Stroke)
Notes
Model Number SCP-1000G-M6F-2
(SCP-1000G-1/4UF-2)		 SCP-1000G-M6FC-2
(SCP-1000G-1/4UFC-2)
Outer Dimensions 35 × 42 × L132 mm（After discharge）
（* After suction：L158 mm）
Syringe Capacity 1000 μL
Theoretical Resolution At full step:0.38 μL
Max. Flow Rate 152 μL/s
Temperature Range 20 ～ 50 ℃
Repeatability CV < 1 % (full stroke)
Motor 2-phase Bipolar Stepper Motor
Syringe Termination M6 or 1/4-28UNF
Wetted Materials Glass, PTFE

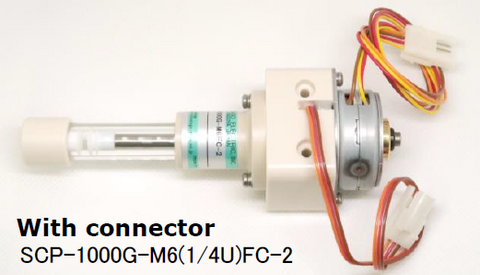

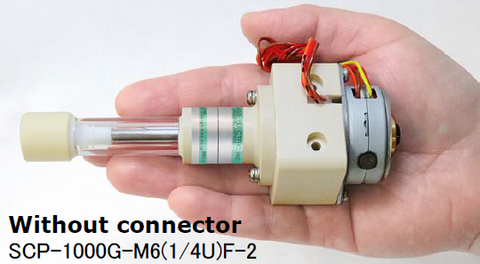

Connector Without connector With connector

Note: Details such as specifications, etc., may be changed without notice.
