Standard Manifolds

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

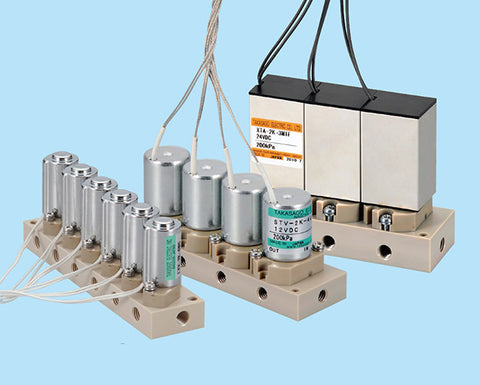

  1. Our standard product range consists of in-line manifolds mounted with EXV series, STV series, and WTA/WTB series valves.
  2. These products achieve a shorter delivery time compared to customized manifold valve units. Please feel free to contact us for more information.

CHARACTERISTICS OF OUR STANDARD MANIFOLDS

CHEMICAL COMPATIBILITY

The manifold is made from PEEK, giving it a high level of chemical resistance. FKM and FFKM (Perflouroelastomer) can be chosen for the sealing material.

CHANNEL CONFIGURATION

A flow channel configuration with a common inlet or a common outlet is available. Please choose M6 or 1/4-28UNF for the port connections.

NUMBER OF MOUNTED VALVES

From 2 to 6 valves can be mounted on the manifold, according to your requirements.

For more details of the mounted valves please see the drawings at the links below. Please feel free to contact us for more information about our standard manifolds.

  1. EXV Series [EXV-2X-XXX]
  2. STV Series [STV-2K-XXIX]

Note: Details such as specifications, etc. may change without notice.
