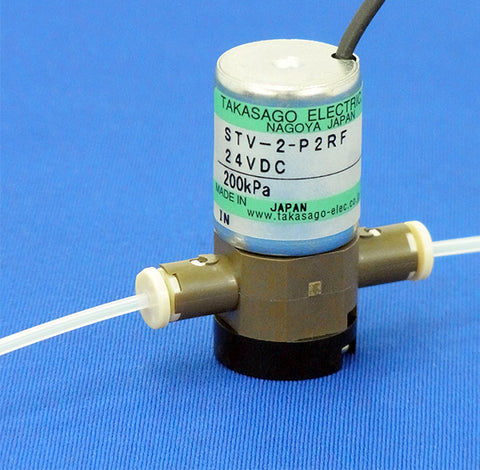

Push-In Fitting Diaphragm Valve

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Easy to just insert plastic tubing into the ports to connect the valve. No special preparation of the tubing is required, such as enlarging the connection end.
  2. For disconnection, simply pull out the tubing while pushing in the port ends (collets).
  3. The tubing can freely revolve even after insertion. This prevents troublesome kinking and twisting that can occur when you screw the other end of the tubing into a threaded port using a conventional fitting.
  4. Integral molding eliminates the concern of leakage between the fittings and the body.
  5. Applicable to use with O.D. 2 mm PTFE/PFA tubing.
  6. Independent threaded fittings are also available, please contact us for more information about this.
  7. The use of PPS, FKM, and PTFE as the wetted materials allows it to achieve the chemical inertness.
  8. We also have available just the Push-In Fitting, if you are just interested in that product. Please feel free to contact us for more information.

Note: Details such as specifications, etc. may change without notice.

STANDARD MODELS - SPECIFICATIONS

Swipe left to see the remaining contents

Model Number CTV-2-P2RF-S CTV-3-P2RF-S
Type 2-way NC 3-way
Orifice Diameter 1.2 mm
Tubing to Connect O.D. 2 mm PTFE/PFA Tubing
Operating Pressure Range -50~200 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.5 W
Duty Cycle Continuous
Dielectric Strength Wetted Materials AC1500V 60 s
PPS, PTFE, and FKM PPS, PPS, PTFE, FKM, and
Al2O3

Note 1: Details including specifications, etc. may change at anytime without notice.

Note 2: Please feel free to consult with us for more information about other applicable models.

CONNECTING/DISCONNECTING TUBING

How to Connect/Disconnect Tubing from fitting
Just insert the tubing into ports.
How to Connect/Disconnect Tubing from fitting
Just pull out the tubing while pushing in the port ends (collet).

Note: Details such as specifications, etc. may change without notice.

EXAMPLE IMAGE

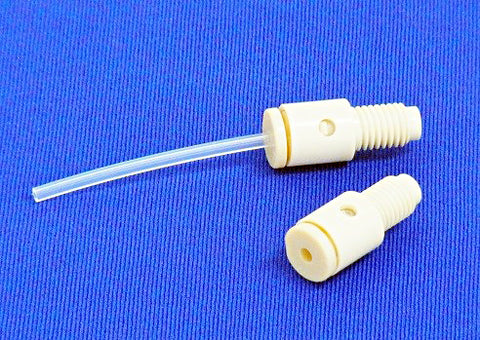

Push-In Fitting Example

APPLICABLE VALVE MODELS??FOR THE PUSH-IN FITTING DIAPHRAGM VALVE

Note: Details such as specifications, etc. may change without notice.

VIDEO OF THE PUSH-IN FITTING DIAPHRAGM VALVE

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number Push-In Fitting
Fluid Temperature Range Maximum 100°C
Operating Pressure 700 kPa at 20°C
450 kPa at 100°C
Notes

Note: Details such as specifications, etc. may be changed without notice.
