Push-In Fitting

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

Quickly Connect, Quickly Disconnect!

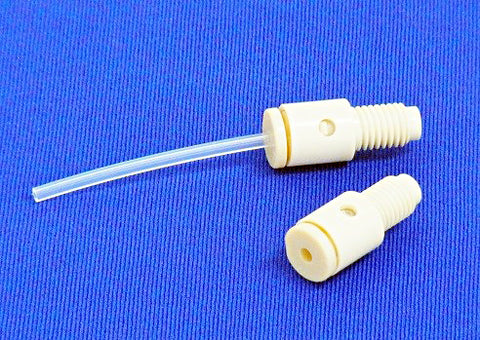

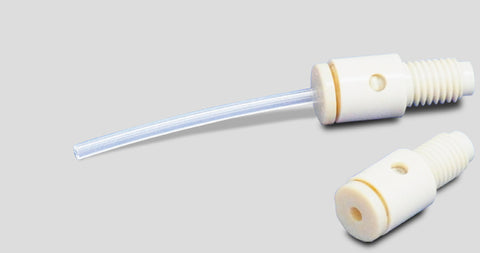

  1. Easy to just insert tubing to connect. To disconnect, simply pull out the tubing while pushing in the collet.
  2. Withstands up to 700 kPa pressure and 100°C fluid temperature.
  3. Applicable to 2 mm O.D. PTFE/PFA tubing.
  4. The tubing can freely rotate even after insertion. This prevents troublesome kinking and twisting that can occur when you screw the other end of the tubing into another port.

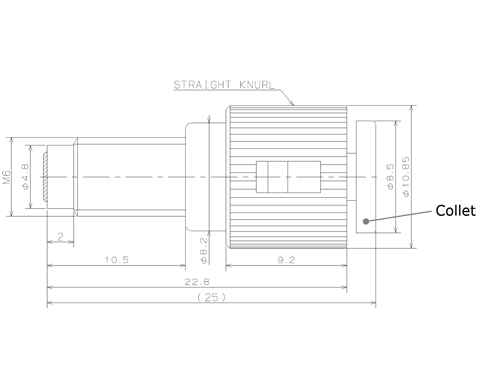

  5. 1/4-28UNF and M6 threads available.
  6. Wetted materials are PPS and FKM.
  7. Valve products are available with these Push-In Fittings built in.
  8. We also have valve that incorporates this Push-In Fitting called the Push-In Fitting Diaphragm Valve, please feel free to contact us for more information.

Note: Details such as specifications, etc. may change without notice.
