Pen-Type Syringe Pump - SBP Series

$1,030.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

Extremely Compact and High Resolution

  1. High resolution provides smooth flow (theoretical resolution: 0.105 nL at 1/100 micro-step).
  2. Remarkably small outer dimensions of diameter of 12 x L 170 mm (threads model), now with a built-in 2-phase stepper motor with a reduction gear. Suitable for portable devices.
  3. An ultra-small type with an outer diameter of 8.8 mm is also available by custom order.

    (Please feel free to contact us for more details of the micro-stepper drive mode.)

  4. Various syringe terminations: needle, Luer Lock, M6 or 1/4-28UNF threads, disposable tip adapter, attachment for our ultra-small 3-way valve, etc.
  5. Has a built-in sensor to prevent overrun.
  6. An easy-to-use controller is available upon request.

Note: Details including specifications, etc. may change without notification.

IMAGE OF SBP-100G-DT WITH A DISPOSABLE TIP

The Pen-Type Syringe Pump can be directly installed onto a moving arm. Therefore, a tip is attached just below the pump, reducing the air gap between the syringe and the sample to a minimum and resulting in higher accuracy.

Image of SBP-100G-DT with a Disposable Tip

Note: Details including specifications, etc. may change without notification.

VIDEO OF PEN - TYPE SYRINGE PUMP - SBP SERIES

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions Diameter of 12 x L165~183 mm (Excluding needle & sensor case)
Pump Method Syringe
Type Pen-Type Syringe Pump
Body Material Glass
Seal Material PTFE
Other Wetted Materials Stainless Steel
Theoretical Resolution At 1/100 Micro-Step: 0.105 nL At Full Step: 10.5 nL
Pumped Volume Adjustable Range Syringe Capacity: 100 μL
Notes
Model Number SBP-100G-N SBP-100G-LL SBP-100G-M6(1/4U)F SBP-100G-DT
Outer Dimensions (Excluding Sensor Case) Dia. 12 x L165 mm (excluding needle) Dia. 12 x L170 mm Dia. 12 x L183 mm
Wetted Materials Glass (barrel), PTFE (tip, seal), & Stainless steel (needle) Glass (barrel), PTFE (tip, seal), PVDF, & Stainless steel (attached needle) Glass (barrel), PTFE (tip, seal), & PEEK (port) Glass (barrel), PTFE (tip, seal) *1

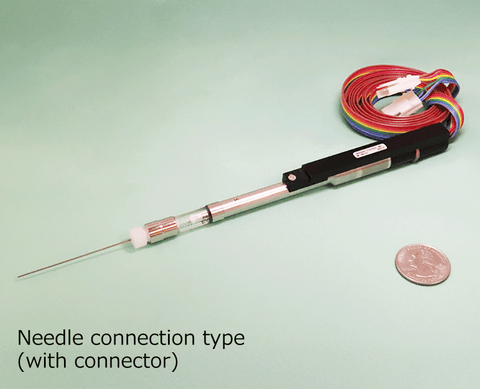

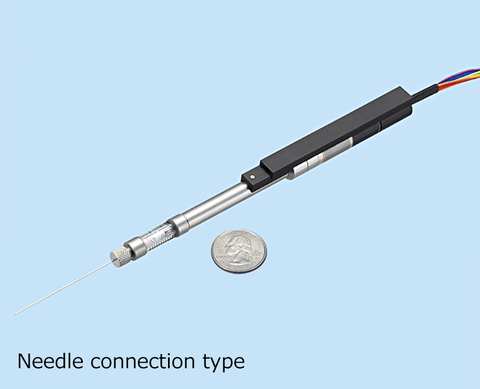

Syringe Termination Needle 22G
(I.D. 0.40 x O.D. 0.72 x L51 mm)
Luer Lock
(with needle)
M6 or 1/4-28UNF female threads *2 Adapter for disposable tip (Eppendorf®, epT.I.P.S., 2-200 μl) *3
Image of Product

Note: Details including specifications, etc. may change without notification.

*1: Samples only contact with a disposable tip (Material: PP).

*2: Male threads also available. Please feel free to contact us for more details.

*3: Disposable tips are not included with this product.
