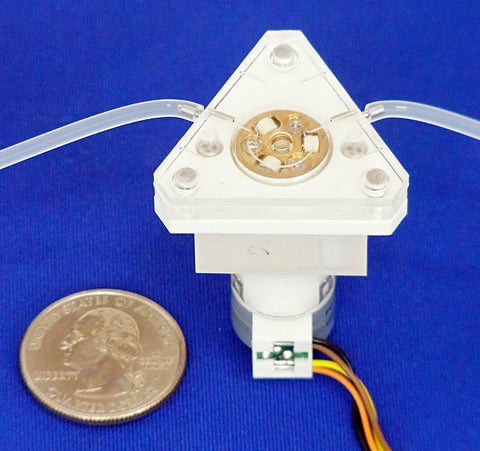

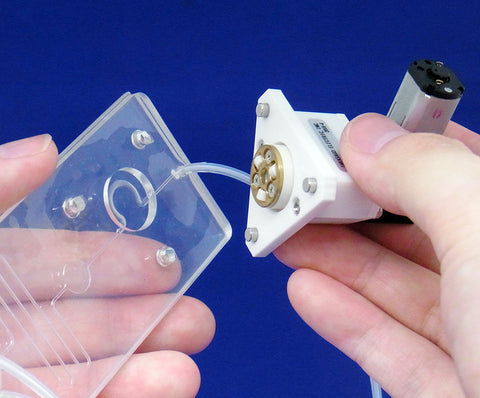

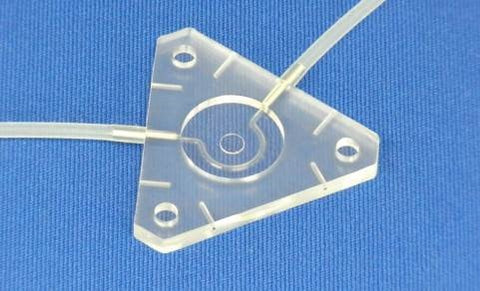

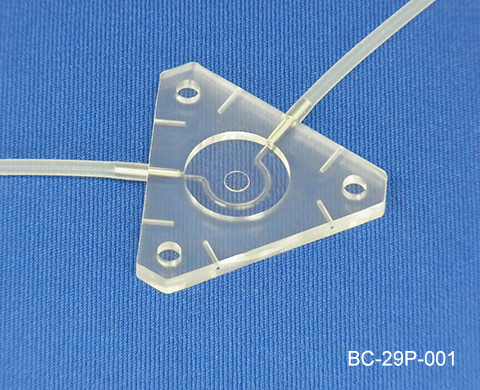

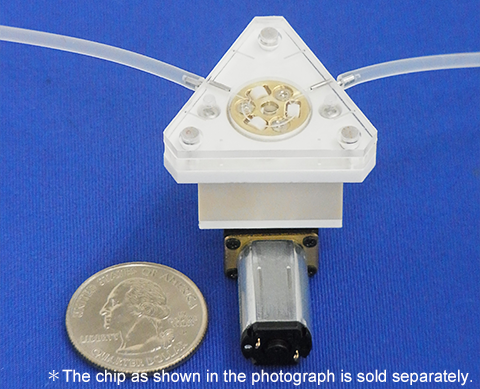

- A PDMS chip incorporates a peristaltic pumping function, where rollers rotate and compress a Ω-shaped channel to pump the liquid inside directly.
- The PDMS chip is replaceable and sterilizable.

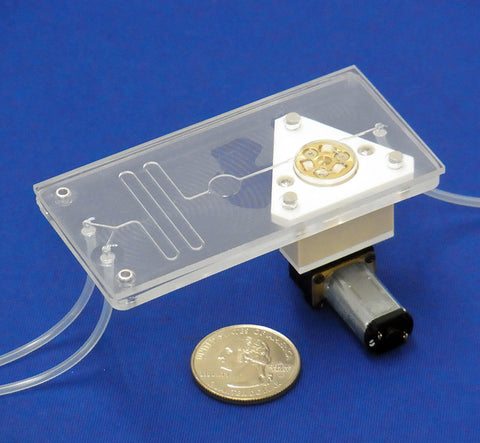

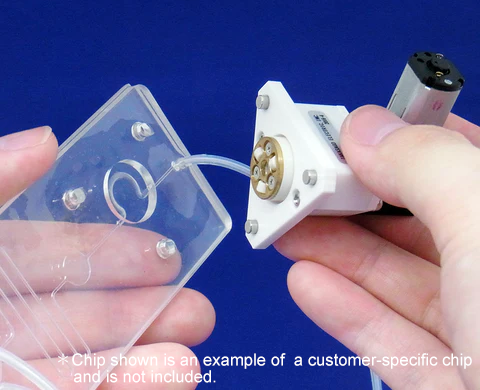

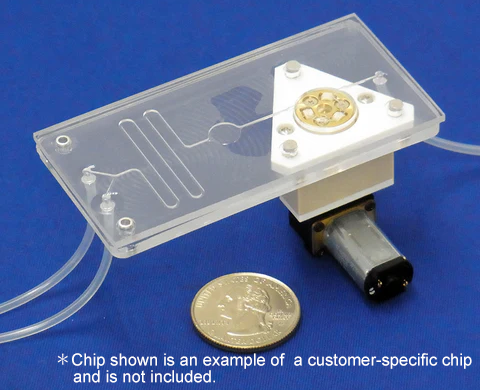

- The picture above is an example of a Chip Pump incorporated into your original PDMS chip.
Note: Details such as specifications, etc., may be changed without notice.
VIDEO OF THE CHIP PUMP - ACP-29/QCP-29
Note: Details such as specifications, etc., may be changed without notice.
MORE INFORMATION
Please feel free to contact us for more information about this product or any questions about our customizations.
We also have a fluidic system that incorporates this chip pump in its design available:
- Disposable Flow Cytometer with Low-Pulsation Chip Pumps
SPECIFICATIONS
Swipe left to see the remaining contents
Model Number |
ACP-29 / QCP-29
|
Operating Pressure |
50 kPa
|
Remarks |
Chip Material: PDMS *3
|
Pump Head Replacement |
Possible
|
Notes |
Model Number |
ACP-29 |
QCP-29 |
Flow Rate *1 |
55 µL/min
200 µL/min |
1~165 µL/min |
Motor |
DC Motor |
Stepper Motor |
Rated Voltage |
3 VDC |
3 VDC *2 |
Note: Details such as specifications, etc., may be changed without notice.
*1: The flow rate of the QCP series is defined when used with the controller RE-C100.
*2: The input power supply of the controller RE-C100 is 100 V AC (50-60 Hz).
*3: Stainless steel pipes for connection and silicone tubing are attached to the standard chips when shipping.
|
