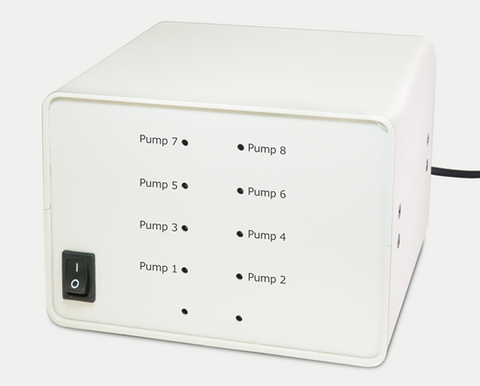

Controller for Pumps and Valves

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

Control Multiple Pumps and Valves with a Single Controller

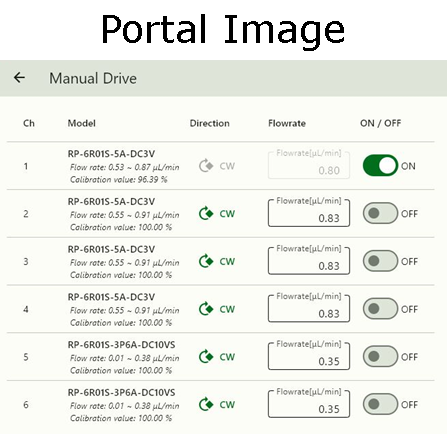

  1. Takasago will supply a USB thumb drive with installation software (PC Portal Control) to operate the controller.
  2. Up to 10 pumps/valves can be connected and controlled.
  3. Different flow rates and directions can be controlled on each pump (for compatible pumps).
  4. In Calibration Mode, the flow rate can be calibrated from the actual measured flow rate of each pump.
  5. Sequence control is also possible.
  6. Both DC and stepper motor option pumps can be controlled.

This product's design can be customizable to the specific needs of the customer. Please feel free to contact us for more information about design altering.

Note: Details such as specifications, etc., may be changed without notice.

CONNECTION EXAMPLE

Controller for Pumps and Valves - Connection Example

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W 152 x L 115 x H 155.8 mm
Rated Voltage Input Voltage: 12 VDC
Supported OS Windows® 10
Notes
Applicable Pumps and Valves Operating voltage in range of 3 to 12 V*1

List of Compatible Pumps and Valves:
- Diaphragm Isolation Valves
- Non-Diaphragm Valves
- Proportional Diaphragm Valves
- Cartridge Valves
- Slider Valves
- Isolation Valves
- Pinch Valves
- Diaphragm Liquid Pumps
- Metering Pumps
- Tubing Pumps
- Chip Pumps
- 6-Channel Pumps
Maximum Number of Connections 10 Units*2
Accessories AC Adapter, USB Cable (Type A) for PC Connection, Connector for Pump Connection*3, and USB Thumb Drive (Installation Software)

Note: Details such as specifications, etc., may be changed without notice.

*1: The maximum current total for all valves and pumps is 3 A.

*2: The maximum number of units that can be connected is 10.

*3: We supply pump electronic connectors by the number of pumps the customer connects to each controller.
