Controller for Piezoelectric Micro Pumps

$389.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

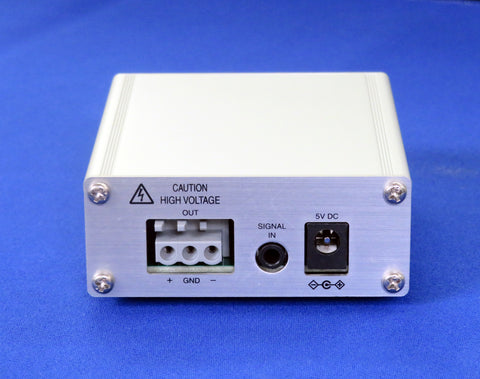

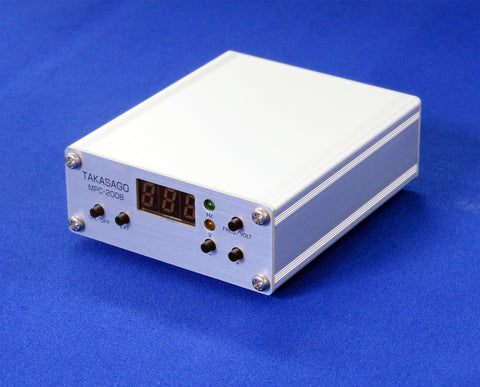

This is the controller that is only compatible to use with the Piezoelectric Micro Pumps. The MPC-200B is a compact and lightweight controller that can provide the high voltage power output necessary to drive the piezoelectric micro pumps. It is user-friendly with a front panel digital display for configuring the output voltage and output frequency, and a memory function to store the most recently used settings.

Please feel free to explore other components that we have for the Piezoelectric Micro Pumps, such as the Driver Board [MPD-200A] that is only compatible to use with these pumps. Also details about the Tubing Accessories that are available for the Piezoelectric Micro Pumps.

  • To use the SXP-APS software for your computer, please download it below.
    • Software SXP-APS
    Manual Controller SXPC
    Manual Software SXP-APS

    Please feel free to contact us for more details about this controller for the piezoelectric micro pumps.

    Note: Details including specifications, etc. may be changed without notification.

    SPECIFICATIONS

    Swipe left to see the remaining contents

    Model Number MPC-200B
    Outer Dimensions 75 x 30 x 89 mm
    Method Controller for Piezoelectric Micro Pumps
    Weight Approximately 140 g
    Notes
    Input Voltage 5 VDC ±5％
    Output Frequency 1 ~ 60 Hz
    Output Voltage 60 ~ 300 Vp-p
    Max Number of Pumps 2 Pumps
    Attachment AC Adapter (100 ~ 240 VAC)

    Note: Details including specifications, etc. may change without notification.
