Driver Board for Piezoelectric Micro Pumps

$118.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

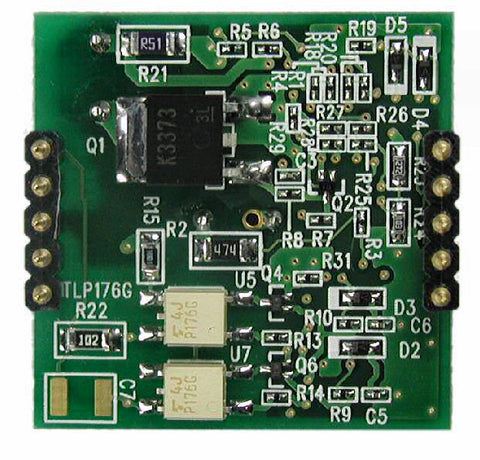

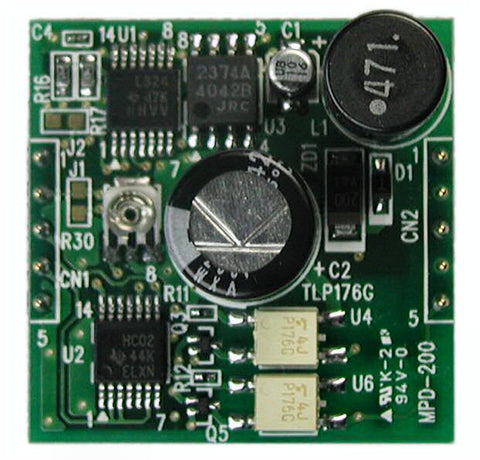

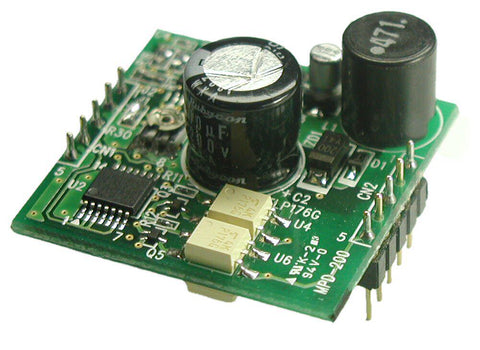

This is the driver board that is only compatible to use with the Piezoelectric Micro Pumps. The MPD-200A is a thin, compact, and lightweight driver board. It is a high voltage circuit board, specifically designed for the piezoelectric micro pumps. From a regular 5 VDC input, it readily generates approximately the 250 Vp-p, 40 Hz necessary for driving the pump.

Please feel free to explore other components that we have for the Piezoelectric Micro Pumps, such as the Controller [MPC-200B] that is only compatible to use with these pumps. Also details about the Tubing Accessories that are available for the Piezoelectric Micro Pumps.

Please feel free to contact us for more details about this driver board for the piezoelectric micro pumps.

Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MPD-200A
Outer Dimensions 30 x 30 x 18 mm
Method Driver Board for Piezoelectric Micro Pumps
Weight Approximately 9 g
Notes
Input Voltage 5 VDC ±5%
Output Frequency 1 ~ 60 Hz
Output Voltage 50 ~ 340 Vp-p
Max Number of Pumps 2 Pumps

Note: Details including specifications, etc. may change without notification.
