Piezoelectric Micro Pump - Standard Series

$102.00

Variation
Quantity

FEATURES / CHARACTERISTICS

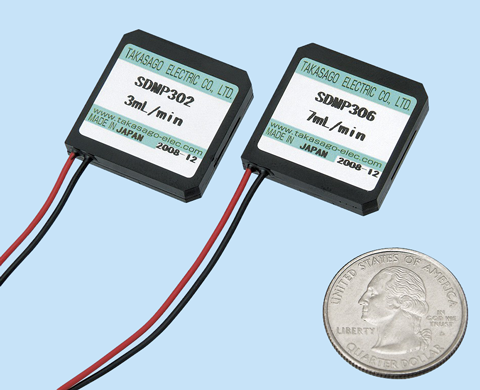

This miniature, slim, and lightweight diaphragm micropump is driven by a piezoelectric element. An external control signal can arbitrarily set the driving voltage and frequency for operating the piezoelectric micropump, enabling flow rate control. It is most suitable to be integrated into small types of equipment.

  1. Small-sized, lightweight, and slim.
  2. Supply of microfluidic volumes is possible.
  3. Wetted materials contain no metal substances.
  4. Low noise and low power consumption.
  5. Flow rate is adjustable by changing drive voltage or drive frequency.
  6. Self-priming is possible.

Note: Details such as specifications, etc., may be changed without notice.

*: This micropump is designed for pumping liquid.


For this pump, there is a dedicated controller or driver that is required to operate this pump:

  1. Controller [MPC-200B]
  2. Driver [MPD-200A]

We also have a higher flow version, the SDMP320, which can provide a larger flow rate of 20 mL/min:

  1. Piezoelectric Micro Pump - Large Flow Type

We do also have a pump with a built-in driver available:

  1. Piezoelectric Micro Pump - Built-In Driver-Type

FLOW CHARACTERISTICS

Image of Frequency - Flow Characteristics SDMP302,306

Note: This flow rate characteristic is a representative value and may vary depending on individual differences.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF PIEZOELECTRIC MICRO PUMP


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SDMP302 / SDMP306
Outer Dimensions 25 x 25 x 4.8 mm
Pump Method Diaphragm
Type Piezoelectric Diaphragm Pump
Port Connection Hose Barb
Ambient Temperature Range

5~50°C

Rated Voltage 60~250 VP-P
Other Wetted Materials COC (Cyclic Olefin Copolymer) or EPDM (Ethylene Propylene Diene Monomer)
Self-Priming Possible
Pumped Volume Adjustable Range 3 mL/min, 7 mL/min
Flow Rate SDMP302: 3 mL/min (Typical)
SDMP306: 7 mL/min (Typical)
Discharge Pressure SDMP302: 40 kPa (Typical)
SDMP306: 45 kPa (Typical)
Weight Approximately 4 g
Maximum Operating Frequency

10~60 Hz

Controller MPC-200B
Driver Board MPD-200A
Notes
Model Number SDMP302 SDMP306
Suction Load Pressure -1.0 kPa (Typical)
Input/Output Pipes φ0.6 - φ1.2 – L2.5 mm φ1.3 - φ2.1 – L3.5 mm

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: The drive waveform specified above is a sine wave. When driven using our standard waveform, the flow rate and pump pressure will increase.

Note 3: The higher flow models (Typical Flow Rate: 20 mL/min) are also available.
