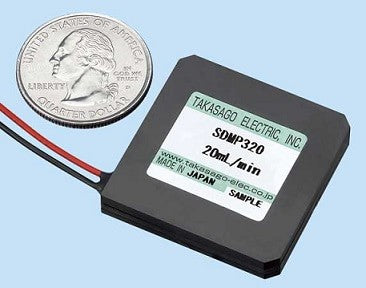

Piezoelectric Micro Pump - Large Flow Type

$146.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView Piezoelectric Micro Pump - Large Flow Type Drawing PDF

A piezoelectric element drives this micro diaphragm pump. This pump is a larger size than the standard type to pump a more significant flow rate.

  1. Small-sized, lightweight, and slim.
  2. There is no metal in the wetted materials.
  3. Low noise and low power consumption.
  4. Flow rate is adjustable by changing drive voltage or drive frequency.
  5. Self-priming is possible.

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: This micropump uses a design for pumping liquid.


For this pump, there is a dedicated controller or driver that is required to operate this pump:

  1. Controller [MPC-200B]
  2. Driver [MPD-200A]

We do also have a pump with a built-in driver available:

  1. Piezoelectric Micro Pump - Built-In Driver-Type

FLOW CHARACTERISTICS

Image of Frequency - Flow Characteristics SDMP320

Image of Voltage - Flow Characteristics SDMP320

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF PIEZOELECTRIC MICRO PUMP


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SDMP320
Outer Dimensions 33 x 33 x 5.5 mm
Type Piezoelectric Diaphragm Pump (Unimorph)
Ambient Temperature Range

5~50°C
Rated Voltage Drive Voltage: 60~250 Vp-p
Drive Frequency: 10~60 Hz
Other Wetted Materials COC (Cyclic Olefin Copolymer) or EPDM (Ethylene Propylene Diene Monomer)
Self-Priming Possible
Flow Rate 20 mL/min
Maximum Pumped Pressure

35 kPa
Weight Approximately 9 g
Controller MPC-200B
Driver Board MPD-200A
Notes
Suction Load Pressure -1.0 kPa
Input / Output Pipes φ1.8 – φ2.8 – L5.0 mm

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: The data above are based on sine wave drive. Flow rate and pump pressure are larger if driven by the Takasago Standard wave.

Note 3: Smaller models (Typical Flow Rate: 3 or 7 mL/min) are also available.
