  • 6-Channel Pump (Peristaltic Pump) Stepper Motor Model
  • 6-Channel Pump (Peristaltic Pump) Stepper Motor Model
  • 6-Channel Pump (Peristaltic Pump) Stepper Motor Model
  • 6-Channel Pump (Peristaltic Pump) Stepper Motor Model

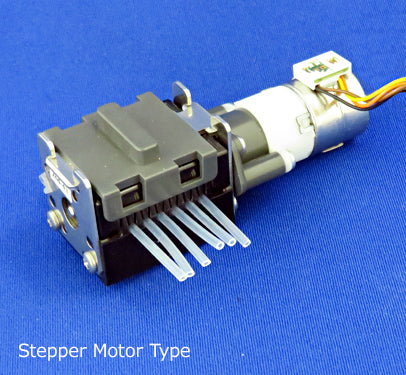

6-Channel Pump (Peristaltic Pump) Stepper Motor Model

$1,788.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS



  1. This product can deliver six separate fluids simultaneously, despite its compact size.
  2. The tubing is easy to replace.

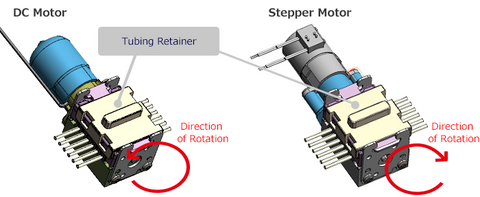

  3. We have a similar version of the 6-Channel Pump that uses a DC motor, 6-Channel Pump (Peristaltic Pump) DC motor model.
  4. We also have a specifically made controller for this pump, Controller for 6-Channel Pump (Stepper Motor Type).

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF 6-CHANNEL PUMP


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-6R01S-3P6A-DC10VS
AQ-RP6R-001
Outer Dimensions 31 x 84 x 32 mm
Type Peristaltic Pump
Tube Material Silicone*2
Tubing Inner Diameter（mm） 1.0 mm
Tubing Outer Diameter（mm） 2.0 mm
Notes
Model Number RP-6R01S-3P6A-DC10VS AQ-RP6R-001
Flow Rate *1 0.23~350 μL/min
Motor Type Stepper Motor
Rated Voltage - *3
Discharge Pressure 30 kPa
Connector without connector with connector
Weight Approximately 80 g

Note : Details such as specifications, etc., may be changed without notice.

* 1: Flow rate per tubing.

* 2: Tubing is not included. SR1554, φ1 x φ2 mm (Tigers Polymer CORP.) is recommended.

* 3: Stepping motor-driven products have a constant-current drive. Controllers for stepper motor driven pumps are sold separately. Please feel free to contact us for more details.
