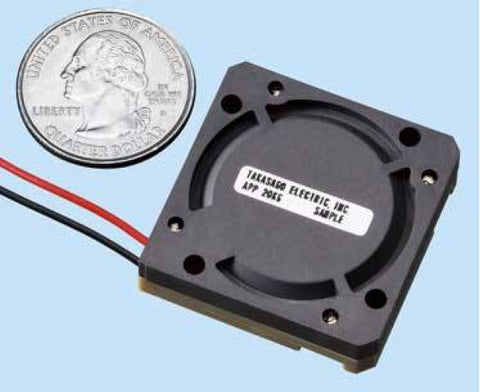

Highly Inert Piezoelectric Micro Pump - APP Series

$196.00

Variation
Quantity

FEATURES / CHARACTERISTICS

Uses only PTFE, PEEK (PPS), and FFKM as wetted materials.
Most suitable for aggressive chemicals, solvents, etc.

  1. Small in size, lightweight, and slim.
  2. The typical flow rate is 15 mL/min, 20 mL/min, which is adjustable by changing drive voltage or drive frequency.
  3. This pump produces low noise and low power consumption.
  4. Self-priming is possible.

Note: Details such as specifications, etc., may be changed without notice.


For this pump, there is a dedicated controller or driver that is required to operate this pump:

  1. Driver Board [MPD-200A]
  2. Controller [MPC-200B]

We do also have a pump with a built-in driver available:

  1. Piezoelectric Micro Pump - Built-In Driver-Type

VIDEO OF PIEZOELECTRIC MICRO PUMP


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number APP-20K(R)G / APP-30WK(R)G
Outer Dimensions 33 x 33 x 9 mm
Pump Method Diaphragm
Type Piezoelectric Diaphragm Pump
Ambient Temperature Range

5~50˚C

Rated Voltage Drive Voltage: 60-250 Vp-p
Drive Frequency: 10 - 60 Hz
Seal Material PTFE, PEEK (PPS), and FFKM
Self-Priming Possible
Flow Rate 15 - 20 mL/min
Maximum Pumped Pressure 25 - 40 kPa
Weight Approximately 17 g
Controller MPC-200B
Driver Board MPD-200A
Notes
Model Number APP-20K(R)G APP-30WK(R)G
Flow Rate 15 mL/min 20 mL/min
Pump Pressure 25 kPa 40 kPa
Suction Load Pressure -1.0 kPa -3.0 kPa
Input / Output Pipes φ1.8 – φ2.8 – L5.0 mm

Note: Details such as specifications, etc., may be changed without notice.
