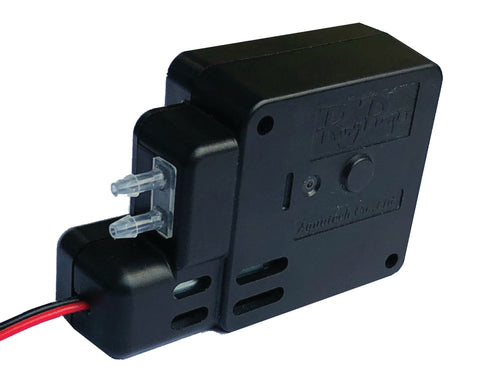

RP-GⅢ Series [Discharge Rate: 2.5 - 12 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Compact box shape and able to combine multiple RP-GⅢ series.
  2. Flow rate range is on the lower end and is similar to:

    Tubing Peristaltic Pump - RP-Q series

    Tubing Peristaltic Pump - RP-CⅢ series

  3. A similar peristaltic pump that has a higher discharge rate and can handle aggressive chemicals by using TM-15 tubing's:

    Tubing Peristaltic Pump - RP-GⅡ series

  4. A similar peristaltic pump that can flow two different types of liquids by using a single pump and also handle aggressive chemicals by using TM-15 tubing's:

    Tubing Peristaltic Pump - RP-2GⅡ series

Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

Few examples of some compatible applications for this product:

  1. Automatic washing machines
  2. Electrolytic water conditioners
  3. Applications for detergent supplies

Note: Details such as specifications, etc., may be changed without notice.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

RP-GⅡ & RP-2GⅡ SERIES

We also have other versions of the highly inert tubing pumps that you can learn more about.

Tubing Peristaltic Pump - RP-GⅡ series

Tubing Peristaltic Pump - RP-2GⅡ series

RP-GII SeriesRP-2GII Series

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-GⅢ

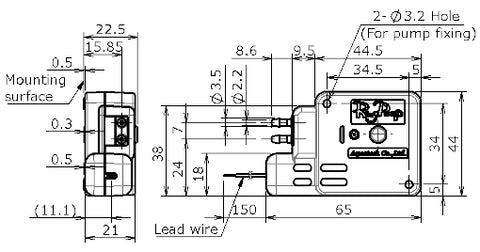

Outer Dimensions 22.5 × 65 × 44 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 3 or 6 VDC
Body Material ABS
Tube Material Silicone, PharMed®, Fluran, or TM-15®
Self-Priming Possible
Pumped Volume Adjustable Range 2.5-12 mL/min
Weight Approximately 62 g
Notes
Model Number Voltage
(VDC)
Discharge Rate (mL/min) Tubing Remarks
Type I.D. x O.D. mm Motor Rotation
RP-GⅢ02S-12Z-DC6V 6 12 Silicone 2.0 x 4.0 CW
RP-GⅢ02S-5Z-DC3V 3 5
RP-GⅢ02F-10Z-DC6V 6 10 PharMed® 2.0 x 4.0 CW
RP-GⅢ02F-4P5Z-DC3V 3 4.5
RP-GⅢ1.6F-6P5Z-DC6V 6 6.5 PharMed® 1.6 x 3.2
RP-GⅢ1.6F-2P5Z-DC3V 3 2.5
RP-GⅢ1.6R-8Z-DC6V 6 8 Fluran 1.6 x 3.2 CW
RP-GⅢ1.6R-3P2Z-DC3V 3 3.2
RP-GⅢ1.6W-7Z-DC6V 6 7 TM-15 1.6 x 3.2 CW
RP-GⅢ1.6W-3Z-DC3V 3 3

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PharMed®: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
