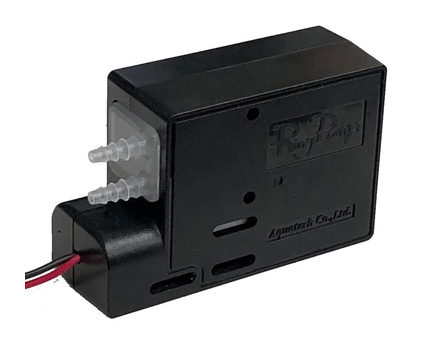

RP-GⅡ Series [Discharge Rate: 10 - 45 mL/min]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Compact box shape allows for stacking of multiple RP-GⅡ pumps.
  2. This pump can use a chemically inert TM-15 tubing that can withstand aggressive chemicals such as MEK, acetone, sodium, hypochlorite, etc., and is suitable for a wide range of applications. Chemical compatibility chart for TM-15 and other tubing's:

    Chemical Compatibility Chart

  3. A similar peristaltic pump that can flow two different types of liquids by using a single pump:

    Tubing Peristaltic Pump - RP-2GⅡ series

  4. These peristaltic pumps are similar and can discharge lower flow rates:

    Tubing Peristaltic Pump - RP-GⅢ series

    Tubing Peristaltic Pump - RP-Q series

    Tubing Peristaltic Pump - RP-CⅢ series

Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

Few examples of some compatible applications for this product:

  1. Automatic washing machines
  2. Electrolytic water conditioners
  3. Applications for detergent supplies

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

P-Q Characteristics RP-G2 Series

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

RP-2GⅡ & RP-GⅢ SERIES

We also have other versions of the highly inert tubing pumps that you can learn more about.

Tubing Peristaltic Pump - RP-2GⅡ series

Tubing Peristaltic Pump - RP-GⅢ series

RP-GII SeriesRP-2GII Series

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-GⅡ

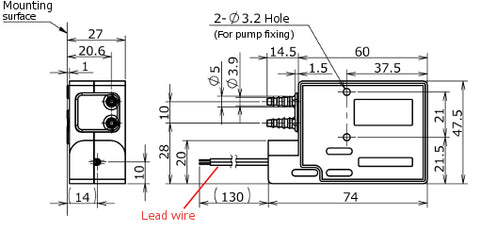

Outer Dimensions 27 × 74 × 47.5 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 12 or 24 VDC
Body Material ABS
Tube Material Silicone, PharMed®, TM-15®, or Norprene®
Tubing Inner Diameter(mm) 2.0, 2.5, or 2.8 mm
Tubing Outer Diameter(mm) 4.0, 4.2, 4.5, or 4.8 mm
Self-Priming Possible
Pumped Volume Adjustable Range 10 - 45 mL/min
Weight Approximately 90 g
Notes
Model Number Voltage
(VDC)
Discharge Rate (mL/min) Tubing
Type ID x OD mm
RP-GⅡ02S-10Z-DC12V 12 12 Silicone 2.0 x 4.0
RP-GⅡ02F-10Z-DC24V 24 10 PharMed®
RP-GⅡ02F-10Z-DC12V 12
RP-GⅡ02W-10Z-DC12V 12 TM-15® 2.0 x 4.2
RP-GⅡ02S-25Z-DC24V 24 25 Silicone 2.0 x 4.0
RP-GⅡ02F-25Z-DC24V PharMed®
RP-GⅡ02W-25Z-DC24V TM-15 2.0 x 4.2
RP-GⅡ2.5S-20Z-DC12V 12 17 Silicone 2.5 x 4.5
RP-GⅡ2.5S-40Z-DC24V 24 40
RP-GⅡ2.8N-20Z-DC12V 12 20 Norprene® 2.8 x 4.8
RP-GⅡ2.8N-40Z-DC24V 24 45

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PharMed®/Norprene®: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
