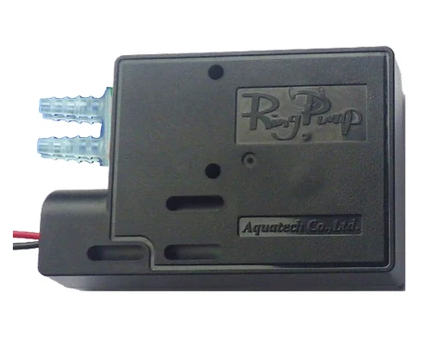

RP-2GⅡ Series [Discharge Rate: 20 - 80 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Compact box shape, which allows for stacking of multiple RP-2GⅡ pumps.
  2. This pump has the ability to use a chemically inert TM-15 tubing that can withstand aggressive chemicals such as MEK, acetone, sodium, hypochlorite, etc., and is suitable to use for a wide range of applications. Chemical compatibility chart for TM-15 and other tubing's:

    Chemical Compatibility Chart

  3. This pump is able to discharge two different types of liquids by using a single pump and two tubing's.
  4. A similar peristaltic pump that can flow one types of liquid:

    Tubing Peristaltic Pump - RP-GⅡ series

  5. These peristaltic pumps are similar and can discharge lower flow rates:

    Tubing Peristaltic Pump - RP-GⅢ series

    Tubing Peristaltic Pump - RP-Q series

    Tubing Peristaltic Pump - RP-CⅢ series

  6. Please feel free to get in touch with us for more details about this product.

    Note: Details such as specifications, etc., may be changed without notice.

    EXAMPLE OF APPLICATIONS

    1. Automatic washing machine, Electrolytic water conditioner, Applications for
      detergent supply etc.

    Note: Details such as specifications, etc., may be changed without notice.

    P-Q CHARACTERISTICS

    P-Q Characteristics RP-G2 Series

    Note 1: Details such as specifications, etc., may be changed without notice.

    Note 2: It will change by the material or ID of the tube or the motor.

    Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

    MECHANISM OF THE RING PUMP

    Mechanism of Ring PumpMechanism of Ring Pump

    Mechanism of Ring Pump

    Aquatech Co., Ltd. logo

    For more information:

    Mechanism of the Micro Peristaltic Pump

    Note 1: Details such as specifications, etc., may be changed without notice.

    Note 2: Visual diagram above is from Aquatech Co., Ltd.

    RP-GⅡ & RP-GⅢ SERIES

    We also have other versions of the highly inert tubing pumps that you can learn more about.

    Tubing Peristaltic Pump - RP-GⅡ series

    Tubing Peristaltic Pump - RP-GⅢ series

    RP-GII SeriesRP-2GII Series

    Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-2GⅡ

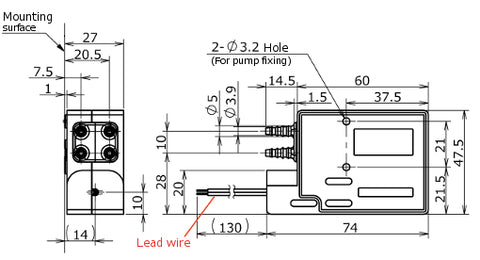

Outer Dimensions 27 × 74 × 47.5 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 12 or 24 VDC
Body Material ABS
Tube Material Silicone, PharMed®, TM-15®, or Norprene®
Tubing Inner Diameter(mm) 2.0, 2.5, or 2.8 mm
Tubing Outer Diameter(mm) 4.0, 4.2, 4.5, or 4.8 mm
Self-Priming Possible
Pumped Volume Adjustable Range 20-80 mL/min
Weight Approximately 115 g
Notes
Model Number Voltage
(VDC)
Discharge Rate (mL/min) Tubing
Type ID x OD (mm)
RP-2GⅡ02S-25Z-DC12V 12 25 Silicone 2.0 x 4.0
RP-2GⅡ02F-25Z-DC12V 20 PharMed®
RP-2GⅡ02W-25Z-DC12V TM-15® 2.0 x 4.2
RP-2GⅡ02S-50Z-DC24V 24 50 Silicone 2.0 x 4.0
RP-2GⅡ02F-50Z-DC24V PharMed®
RP-2GⅡ02W-50Z-DC24V TM-15® 2.0 x 4.2
RP-2GⅡ2.5S-35Z-DC12V 12 30 Silicone 2.5 x 4.5
RP-2GⅡ2.5S-70Z-DC24V 24 70
RP-2GⅡ2.8N-80Z-DC24V 80 Norprene® 2.8 x 4.8

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PharMed®/Norprene®: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
