Ring Pump RP-Q Series [Discharge Rate: 0.2 - 3.0 mL/min]

$61.00

Variation
Quantity

FEATURES / CHARACTERISTICS





  1. Compact dimensions of up to 15 x 17 x 34.1 mm.
  2. Discharge rates are available from 0.2 - 3.0 mL/min.
  3. Tubing options of Silicone, TygonⓇ A-60-F or SWFT.
  4. The RP-QⅡ and RP-QⅢ feature replaceable pump heads.
  5. Pump head may be sterilized by autoclave or gamma ray.*
  6. The pump is driven by a DC geared motor, offers low power consumption, and can optionally be operated by batteries 3VDC.

Please feel free to get in touch with us for more details about this option.

Note: Details such as specifications, etc., may be changed without notice.

*: Silicone Tubing: Autoclavable one time at 121°C for 25 minutes. / Gamma ray sterilization with 25 kGy.
SWFT Tubing: Gamma-ray sterilization with 25 kGy. (Not Autoclavable)

P-Q CHARACTERISTICS

PQ Characteristics

RP-QII PQ Characteristics

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: PQ Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

This is a product from Aquatech Co., Ltd.Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Ring Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

VIDEOS OF THE RP-Q SERIES




Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-Q & QX / RP-QⅡ & QⅡX / RP-QⅢ & QⅢX

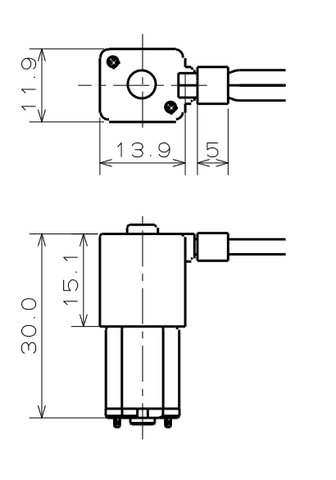

Outer Dimensions RP-Q: 12 x 14 x 30 mm

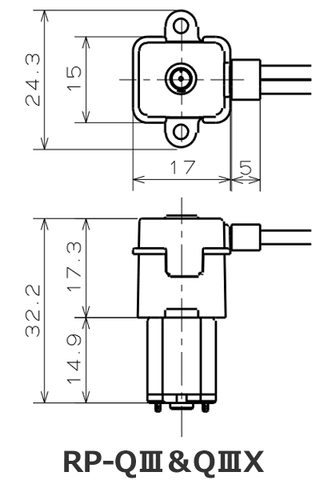

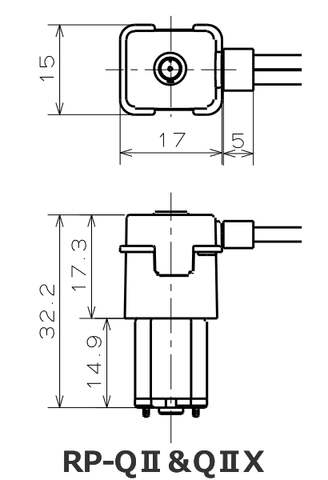

RP-QⅡ & RP-QⅢ: 15 x 17 x 32.2 mm
Motor DC Geared Motor
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 3 VDC
Power Consumption <0.4 W (RP-QⅡA/QⅢA:<0.5 W)
Tube Material Silicone, Tygon® A-60-F, or SWFT
Self-Priming Possible
Pumped Volume Adjustable Range 0.2~3.0 mL/min
Maximum Pumped Pressure 50 kPa
Weight Approximately 11~13 g
Remarks No mounting flange (Option available to use mounting clip)
*RP-QⅢ & QⅢX is equipped.
Pump Head Replacement RP-Q: Impossible
RP-QⅡ & RP-QⅢ: Possible
Notes
Model Number Discharge Rate *1 (mL/min) Tubing Remarks
Type I.D. x O.D. (mm) Motor
Rotation
Flow
Direction *3
RP-Q1.5S-P45Z-DC3V 0.45 Silicone 1.5 x 2.5 CCW A
RP-Q1.2N-P20Z-DC3V 0.20 Tygon® A-60-F 1.2 x 2.5
RP-Q1.2C-P20Z-DC3V SWFT
RP-QX1.5S-1Z-DC3V 1.10 Silicone 1.5 x 2.5 CW B
RP-QX1.2N-P50Z-DC3V 0.50 Tygon® A-60-F 1.2 x 2.5
RP-QX1.2C-P50Z-DC3V SWFT
RP-QⅡ1.5S-P90Z 0.9 Silicone 1.5 x 2.5 CCW A
RP-QⅡ1.2C-P45Z 0.45 SWFT 1.2 x 2.5
RP-QⅡX1.5S-2P2Z 2.20 Silicone 1.5 x 2.5 CW B
RP-QⅡX1.2C-1P2Z 1.20 SWFT 1.2 x 2.5
RP-QⅡA1.5S-3Z 3.00 *2 Silicone 1.5 x 2.5
RP-QⅢ1.5S-P90Z 0.90 CCW A
RP-QⅢ1.2C-P45Z 0.45 SWFT 1.2 x 2.5
RP-QⅢX1.5S-2P2Z 2.20 Silicone 1.5 x 2.5 CW B
RP-QⅢX1.2C-1P2Z 1.20 SWFT 1.2 x 2.5
RP-QⅢA1.5S-3Z 3.00 *2 Silicone 1.5 x 2.5

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Tygon® A-60-F/SWFT: Product of Saint-Gobain SA.

*1: ±20%, water is at 20˚C.

*2: +15% / -25%, water is at 20˚C.

*3: Flow Direction:

Flow Direction - RP-Q
