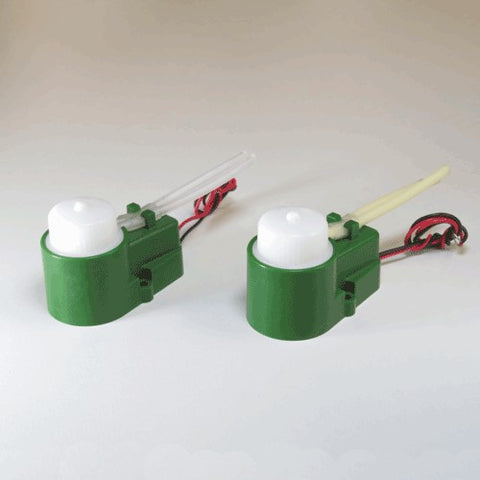

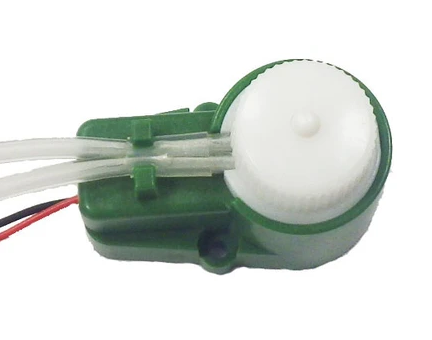

RP-CⅢ Series [Discharge Rate: 1.6 - 2.8 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Small in size and small in flow rate among multi-purpose pumps in our lineup.
  2. Pump head including tube is replaceable and you have a wide range of usages. Please get in touch with us for more details about our replaceable pump heads.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

  1. Analytical instruments, medical devices, ink jet printer and many other usages where micro-fluidic control is needed.

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

P-Q Characteristics RP-C3 Series

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-CⅢ

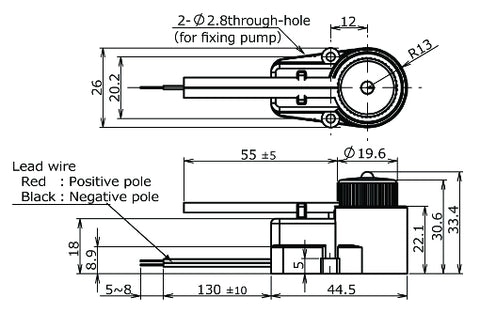

Outer Dimensions 26 × 44.5 × 33.4 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 3 or 5 VDC
Body Material Case: ABS
Head: POM
Tube Material Silicone, PharMed®, or Fluran
Tubing Inner Diameter(mm) 1.6 mm
Tubing Outer Diameter(mm) 3.2 mm
Pumped Volume Adjustable Range 1.6 or 2.8 mL/min
Weight Approximately 30 g
Notes
Model Number Voltage V DC Discharge Rate (mL/min) Tubing Usable Voltage Range
Type ID x OD mm
RP-CⅢ1.6S-2Z-DC3V 3 1.6 Silicone 1.6 x 3.2 3 - 5V
RP-CⅢ1.6F-2Z-DC3V PharMed®
RP-CⅢ1.6R-2Z-DC3V Fluran
RP-CⅢ1.6S-3Z-DC5V 5 2.8 Silicone 1.6 x 3.2 3 - 5V
RP-CⅢ1.6F-3Z-DC5V PharMed®
RP-CⅢ1.6R-3Z-DC5V Fluran

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Flow rate can be adjusted by power voltage.

Note 3: PharMed®: Product of Saint-Gobain SA.
