  • SMV Series [Orifice: 0.8 mm / PEEK Body]
  • SMV Series [Orifice: 0.8 mm / PEEK Body]

SMV Series [Orifice: 0.8 mm / PEEK Body]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

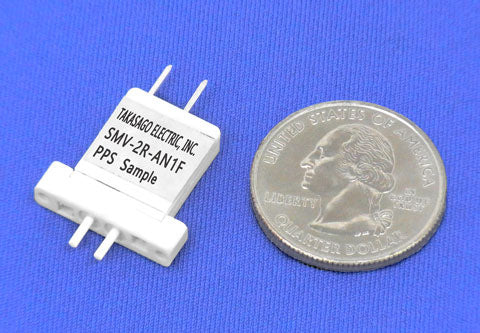

This product is the shape memory alloy valve. The outer dimensions are 4.0 x 18.4 x 19.0 mm, and the weight is only 1.5 g. It is a very compact and lightweight valve. Quiet without generating driving noise like a solenoid valve.

  1. Compact and lightweight.
  2. Silent operation.
  3. Low power consumption 0.3 W or less.
  4. Low cost and disposable.

Please feel free to contact us for more details about this low power consumption valve, the SMV series.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF SMV SERIES


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SMV-2K-BMFE

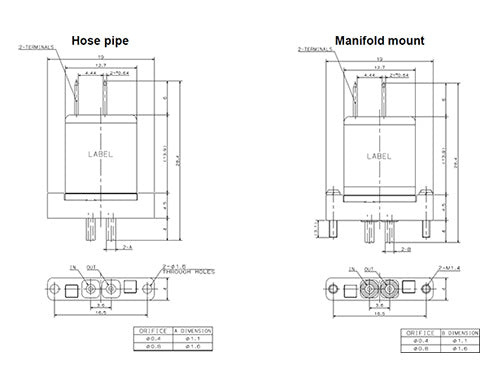

Outer Dimensions 4 x 16 x 16.5 mm
Method Shape Memory Alloy Valve
Type 2-way NC
Port Connection Manifold-Mount Type (O-Ring) or Hose Barb
Orifice（mm） 0.8 mm
IN Port Pressure 0~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~40°C
Ambient Temperature Range 5~40°C
Power Consumption >0.25 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM, FFKM, or EPDM
Weight 1.5 g
Notes

Note: Details such as specifications, etc., may be changed without notice.
