Stepper Motor Type of Ring Pump RP-QⅡ/RP-QⅢ Series [Discharge Rate: 0.35~350 μL/min]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

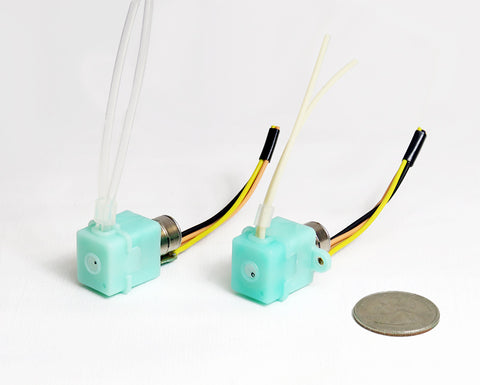

Fingertop Size Peristaltic Pump

  1. Compact dimensions
  2. Stepper motor type with 5 different discharge rates.
    Range of minimum 0.06 μL/min to maximum 1.1 mL/min depending on the pump option.
  3. Tubing options of Silicone or PharMed® BPT.

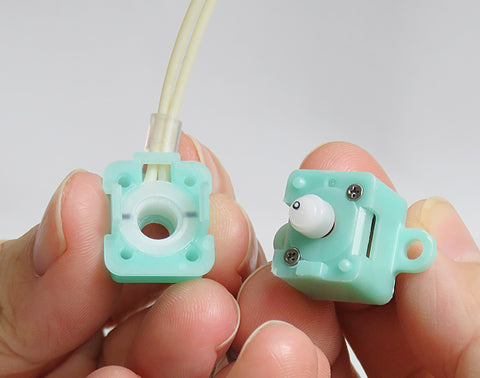

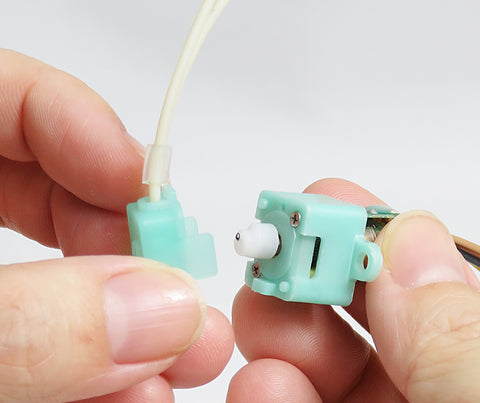

  4. Detachable / Replaceable Pump Head
  5. Pump head may be sterilized by autoclave or gamma ray*
  6. Suitable for analytical instruments, medical devices, fuel cells, drug delivery systems, regenerative medicine (cell culturing), etc.
  7. An easy-to-use controller is available upon request (Sold Separately). Please feel free to contact us for more details about the controller.

    Controllers for Ring Pump RP-QⅡ/RP-QⅢ

Note: Details such as specifications, etc., may be changed without notice.

*: Silicone Tubing: Autoclavable one time at 121°C for 25 minutes. / Gamma-ray sterilization with 25 kGy.
PharMed® BPT Tubing: Gamma-ray sterilization with 25 kGy. (Not Autoclavable)


We also have a similar product to this pump, it's called:

  1. Ring Pump - RP-Q series

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Ring Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

VIDEOS OF THE RP-Q SERIES




Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-QⅡB / RP-QⅢB
Motor 2-Phase Bipolar Type Stepper Motor
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 3.0 VDC (Recommendation)
Power Consumption 350 mW
Tube Material Silicone or PharMed® BPT
Pumped Volume Adjustable Range 0.35 ~ 350 μL/min by stepper motor
Maximum Pumped Pressure ≧30kPa
Weight Approximately 11~13 g
Remarks Mounting Flange: None (Optionally Mounting Clip, for RP-QⅡB / RP-QⅡC) / Equipped (RP-QⅢ)
Pump Head Replacement Possible *2
Notes

Discharge Rate: 0.35 ~ 350 μL/min*1

Model Number Tubing Wire Length / Connector*2 Model # of Pump Head Compatible Controllers
Material I.D. O.D.
RP-QⅡB1.5S-P35A-DC3VS
RP-QⅢB1.5S-P35A-DC3VS
Silicone 1.5 mm 2.5 mm 50 cm
Without Connector
RK-QⅡ1.5S RE-C600
(Without Connector)
RP-QⅡB1.5S-P35C-DC3VS
RP-QⅢB1.5S-P35C-DC3VS
50 cm
With Connector
RE-C500/C501,
RE-C600
(With Connector)
RP-QⅡB1.5S-P35B-DC3VS
RP-QⅢB1.5S-P35B-DC3VS
2 m
With Connector
RK-QⅡ1.5S-D

Note *1: The discharge rate is the value when using the motor controller RE-C600/C602 and driving at 1 to 1,000 PPS.

Note *2: The pump with a connector is required for use with the motor controller RE-C500/C501. RE-C600 can be used with or without a connector.

*: PharMed® is a trademark of Saint-Gobain Performance Plastics.

Note: Details such as specifications, etc., may be changed without notice.
