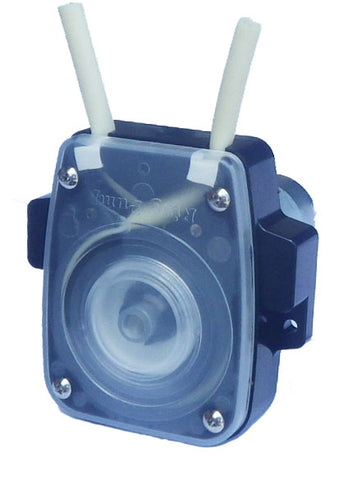

Ring Pump RP-M Series (DC-Type) - [Discharge Rate: 5 - 65 mL/min]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. This pump is the only series among our product lineup that you have an option between a DC or AC type voltage for the pump. Link of our AC type available: Ring Pump - RP-M series (AC-Type)
  2. A wide range of applications is possible.
  3. Chemical compatibility chart for tubings: Chemical Compatibility Chart

Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

Examples of Application

Few examples of some compatible applications for this product:

  1. Automatic washing machines
  2. Electrolytic water conditioners
  3. Air pressure adjusters
  4. Automatic car washers
  5. Applications for detergent supplies

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

RP-M Series P-Q Characteristics

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Ring Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-M (DC-Type)
Outer Dimensions 74 × 74.5 × 82.5 mm / 74 × 74.5 × 85 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 24 VDC
Body Material ABS or PP
Tube Material Silicone, PharMed®, TM-15®, SWFT
Tubing Inner Diameter(mm) 2.0, 3.0, or 4.0 mm
Tubing Outer Diameter(mm) 4.0, 5.0, or 6.0 mm
Self-Priming Possible
Pumped Volume Adjustable Range 5-65 mL/min
Weight Approximately 260 g
Notes
Model No. Discharge Rate
(mL/min)
Tubing Remarks

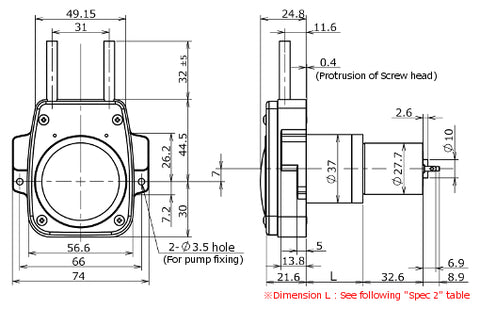

Type IDxOD (mm) Dimension of "L" (mm) Rotative Direction Discharge Direction
RP-M02S-5Z-DC24V 5 Silicone 2.0 x 4.0 30.8 CW A
RP-M02F-5Z-DC24V PharMed®
RP-M02W-5Z-DC24V TM-15®
RP-M03S-10Z-DC24V 10 Silicone 3.0 x 5.0
RP-M03F-10Z-DC24V PharMed®
RP-M03W-10Z-DC24V TM-15®
RP-M03S-20Z-DC24V 20 Silicone
RP-M03F-20Z-DC24V PharMed®
RP-M03W-20Z-DC24V TM-15®
RP-M03S-30Z-DC24V 30 Silicone
RP-M03F-30Z-DC24V PharMed®
RP-M03W-30Z-DC24V TM-15®
RP-M04S-50Z-DC24V 50 Silicone 4.0 x 6.0 28.3 CCW B
RP-M04F-50Z-DC24V PharMed®
RP-M04W-50Z-DC24V TM-15®
RP-M04C-50Z-DC24V SWFT 3.9 x 5.8
RP-M04F-70Z-DC24V 65 PharMed® 4.0 x 6.0
RP-M04W-70Z-DC24V TM-15®
RP-M04C-70Z-DC24V SWFT 3.9 x 5.8

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PharMed®/SWFT: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
