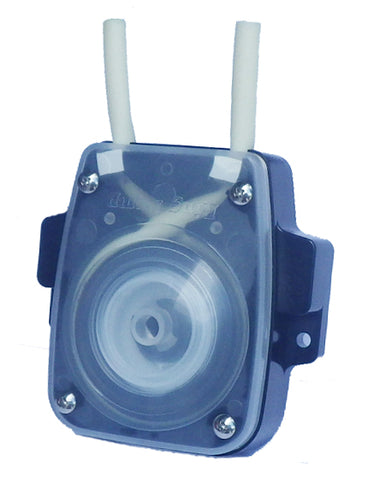

RP-M Series (AC-Type) - [Discharge Rate: 5 - 35 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. This is the only series among our product lineup that you have an option between an AC or DC type voltage for the pump. Link of our DC type available: Tubing Peristaltic Pump - RP-M series (DC-Type)
  2. A wide range of applications is possible.
  3. Chemical compatibility chart for tubing's: Chemical Compatibility Chart
  4. Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

  1. Automatic washing machine, Electrolytic water conditioner, Air pressure adjuster, Automatic car washer, and many other applications for detergent supply, etc.

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

RP-M Series P-Q Characteristics

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-M (AC-Type)

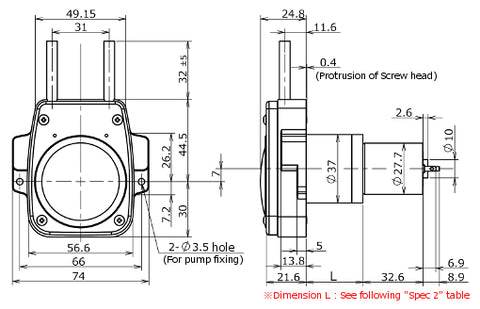

Outer Dimensions 74 × 74.5 × 82.5~85 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 100 VAC
Body Material ABS or PP
Tube Material Silicone, PharMed®, or SWFT
Tubing Inner Diameter(mm) 2.0, 3.0, or 4.0 mm
Tubing Outer Diameter(mm) 4.0, 5.0, or 6.0 mm
Self-Priming Possible
Pumped Volume Adjustable Range 5-35 mL/min
Weight Approximately 200 g
Notes
Model Number Discharge Rate
(mL/min)
Tubing
Type IDxOD (mm)
RP-M02S-5Z-AC100V 5 Silicone 2.0 x 4.0
RP-M02F-5Z-AC100V PharMed®
RP-M03S-15Z-AC100V 15 Silicone 3.0 x 5.0
RP-M03F-15Z-AC100V PharMed®
RP-M04S-20Z-AC100V 20 Silicone 4.0 x 6.0
RP-M04F-20Z-AC100V PharMed®
RP-M04C-20Z-AC100V SWFT 3.9 x 5.8
RP-M04S-35Z-AC100V 35 Silicone 4.0 x 6.0
RP-M04F-35Z-AC100V PharMed®
RP-M04C-35Z-AC100V SWFT 3.9 x 5.8

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PharMed®/SWFT: Product of Saint-Gobain SA.
