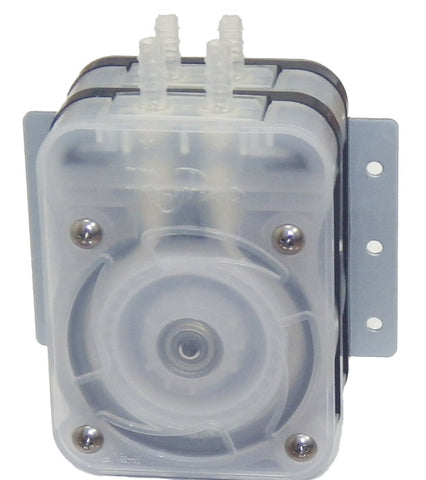

RP-2S Series [Discharge Rate: 1,000 - 1,600 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. This pump features the highest flow rate among our lineup.
  2. This model offers double the flow rate by combining two RP-S series. We also have the original single RP-S series that has a lower flow rate: Tubing Peristaltic Pump - RP-S series
  3. Chemical compatibility chart for tubing's: Chemical Compatibility Chart
  4. Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

Few examples of some compatible applications for this product:

  1. Automatic washing machines
  2. Automatic coffee cup makers
  3. Floor washer applications
  4. Hand washer applications
  5. Applications for detergent supplies

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

RP-2S P-Q Characteristics

Note 1: Details including specifications, etc. may be changed without notification.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-2S

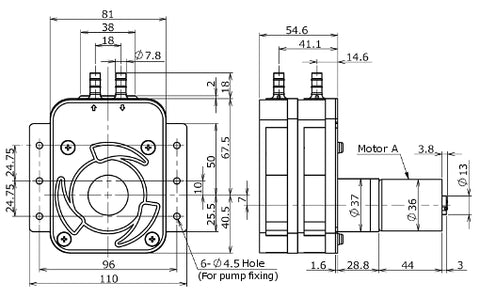

Outer Dimensions 110 × 108 × 131.2 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 24 VDC
Body Material NBR or PP
Tube Material Norprene®, PharMed®, or TM-15®
Tubing Inner Diameter(mm) 6.35 or 7.0 mm
Tubing Outer Diameter(mm) 9.52 or 10.0 mm
Self-Priming Possible
Pumped Volume Adjustable Range 1000-1600 mL/min
Weight Approximately 900 g
Notes
Model Number Discharge Rate (mL/min) Tubing Remarks
Type ID x OD (mm) Motor Rotative Direction
RP-2S06N-1000Z-DC24V 1,000 Norprene® 6.35 x 9.52 Motor A CW
RP-2S06F-1000Z-DC24V PharMed®
RP-2S06W-1000Z-DC24V TM-15®

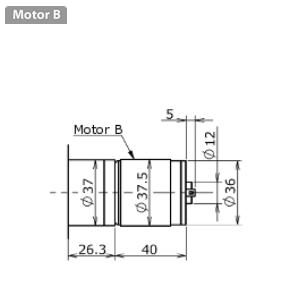

RP-2S06N-1400Z-DC24V 1,400 Norprene® Motor B CW
RP-2S06F-1400Z-DC24V PharMed®
RP-2S07W-1600Z-DC24V 1,600 TM-15® 7 x 10

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Norprene®/PharMed®: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
