Pinch Valve - PL Series

CHARACTERISTICS

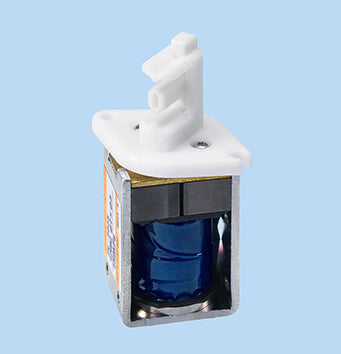

The PL series is a pinch valve adopting a latching solenoid, which maintains the valve open or closed state through the utilization of a permanent magnet. It contributes to low power consumption, because electricity is consumed only when energized.

TECHNICAL DETAILS FOR THE LATCHING SOLENOID

  1. Latching Solenoid Valve Mechanism
  2. Operation Principles of the Latching Solenoid Valve Mechanism

SPECIFICATIONS

Swipe left to see the remaining contents

Method Latching Solenoid
Tubing Inner Diameter(mm) 0.8 - 2.0 mm
Tubing Outer Diameter(mm) 2.4 - 4.0 mm
Tubing Material Silicone, Pharmed®
Type 2-way NC, 2-way NO, or 3-way
Operating Pressure Range
0~150 kPa
Rated Voltage 12 or 24 VDC
Power Consumption 8 W
Operating Duration Intermittent
Outer Dimensions 30.4 x 30.4 x 61.7 mm
Ambient Temperature Range 0~40 ℃

Note: Specifications etc. may be changed at any time without notice.
