  • PL Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 2-way]
  • PL Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 2-way]

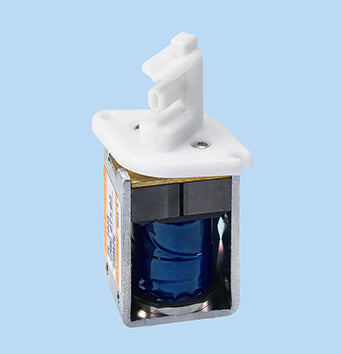

PL Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 2-way]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The PL series is a pinch valve adopting a latching solenoid, which maintains the valve open or closed state through the utilization of a permanent magnet. It contributes to low power consumption, because electricity is consumed only when energized.??

Please feel free to contact us for more details??about this latching solenoid pinch valve, the PL series.

TECHNICAL DETAILS??FOR THE LATCHING SOLENOID

  1. Latching Solenoid Valve Mechanism
  2. Operation Principles of the Latching Solenoid Valve Mechanism

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PL-0308
Outer Dimensions 45 x 29.7 x 65.5 mm
Method Latching Solenoid Valve
Type 2-way NC
IN Port Pressure -50~80 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 12 V DC
Power Consumption 11.5 W
Operating Duration Intermittent
Tube Material Pharmed®
Tubing Inner Diameter(mm) 3 mm
Tubing Outer Diameter(mm) 5 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
