PL Series [Tubing I.D.: 1 mm, O.D.: 3 mm / 2-way]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

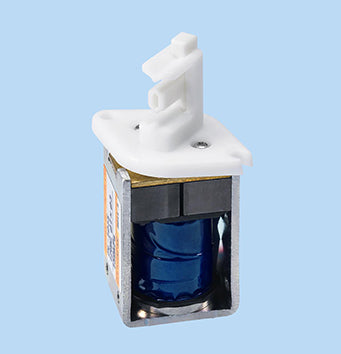

The PL series is a pinch valve adopting a latching solenoid, which maintains the valve open or closed state through the utilization of a permanent magnet. It contributes to low power consumption, because electricity is consumed only when energized.??

Please feel free to contact us for more details??about this latching solenoid pinch valve, the PL series.

TECHNICAL DETAILS??FOR THE LATCHING SOLENOID

  1. Latching Solenoid Valve Mechanism
  2. Operation Principles of the Latching Solenoid Valve Mechanism

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PL-1015NC / PL-1015NO
Outer Dimensions W39.2 x L32.5 x H62.3 mm
Method Latching Solenoid Valve
Type 2-way NC or 2-way NO
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~40°C
Rated Voltage 12 or 24 V DC
Power Consumption 8 W
Operating Duration Intermittent
Tube Material Silicone
Tubing Inner Diameter(mm) 1 mm
Tubing Outer Diameter(mm) 3 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
