Diaphragm Isolation Valves MLV Series

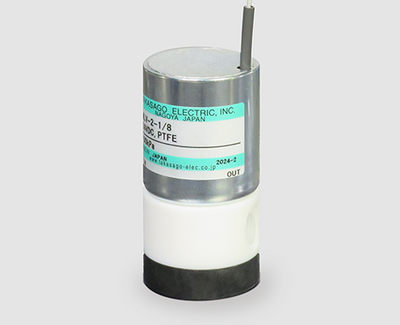

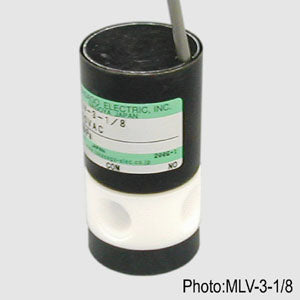

The MLV series is a diaphragm isolation valve with the outer dimensions of φ30.0 x 57.2 mm. The PTFE machined diaphragm of this solenoid valve has a high chemical compatibility. The port connection can be selected from M8, 5/16-24UNF, Rc1/8 and 1/8-27NPT.

Specifications

Method Solenoid
Orifice(mm) 2.5 mm
Type 2way-NC, 3way
IN port pressure
-40~200 kPa
OUT port pressure (NC)
0~50 kPa
OUT port pressure (NC)(NO)
0~50 kPa
Port connection M8, 5/16-24UNF, Rc1/8, 1/8-27NPT
Body material PTFE, HPVC, POM, PEEK
Seal material PTFE, Perfluoroelast
Other wetted materials PTFE・AL2O3
Rated voltage 12VDC, 24VDC, 90VDC, 100VAC
Power consumption 3.1 - 4.4 W
Operating duration Continuous
Outer dimensions φ30.0 x 57.2 mm
Fluid temperature range 0~60 ℃
Ambient temperature range 0~60 ℃
