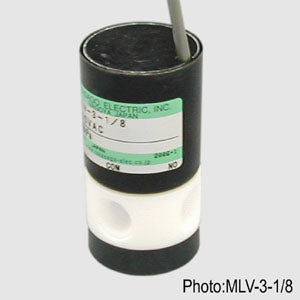

Diaphragm Valve - MLV Series [3-way / Orifice: 2.5 mm / PEEK Body]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

The MLV series is a solenoid diaphragm isolation valve with the outer dimensions of just 30.0 x 57.2 mm. The PTFE machined diaphragm of this solenoid valve has high chemical compatibility. The port connection can be selected from the options of M8, 5/16-24UNF, Rc1/8, and 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the MLV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MLV-3-M8H2
Outer Dimensions 30 x H58.2 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection M8
Orifice(mm) 2.5 mm
IN Port Pressure -40~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 0~90°C
Ambient Temperature Range 0~60°C
Rated Voltage 24 VDC
Power Consumption 4.4 W
Operating Duration Continuous
Body Material PEEK
Seal Material PTFE
Other Wetted Materials AL2O3
Notes

Note: Details such as specifications, etc. may be changed without notification.
