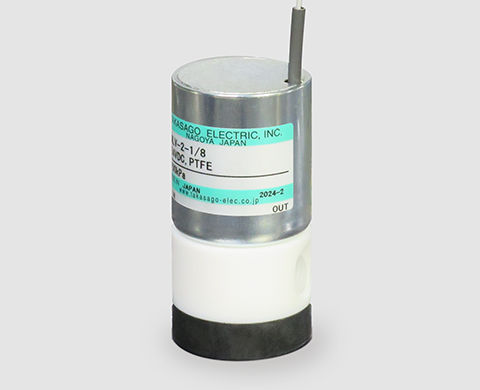

Diaphragm Valve - MLV Series [2-way NO / Orifice: 2.5 mm / PTFE Body]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView MLV Series [2-way NO / Orifice: 2.5 mm / PTFE Body] Drawing PDF

The MLV series is a solenoid diaphragm isolation valve with the outer dimensions of just 30.0 x 57.2 mm. The PTFE machined diaphragm of this solenoid valve has high chemical compatibility. The port connection can be selected from the options of M8, 5/16-24UNF, Rc1/8, and 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the MLV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MLV-2-M8NO
Outer Dimensions 30 x H60.7 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NO
Port Connection M8
Orifice（mm） 2.5 mm
IN Port Pressure -40~196 kPa
OUT Port Pressure (NC) 0~49 kPa
Fluid Temperature Range 0~50°C
Ambient Temperature Range 0~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.1 W
Operating Duration Continuous
Body Material PTFE
Seal Material PTFE
Other Wetted Materials -
Notes

Note: Details such as specifications, etc. may be changed without notification.
