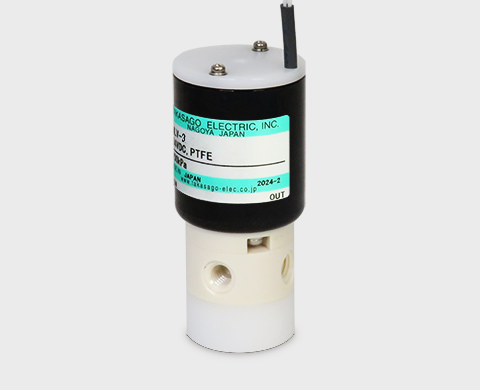

Diaphragm Valve - MLV Series [3-way / Orifice: 0.3 mm / PPS Body]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  • High pressure specification up to 1.5MPa.
  • Chemical resistant wetted materials.
  • Ideal choice for separator in supercritical fluid chromatography system.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MLV-3-M6H-x
Outer Dimensions 30 × H65.1 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection M6
Orifice（mm） 0.3
IN Port Pressure -90 ~ 1500 kPa
OUT Port Pressure (NC) 0 ~ 100 kPa
Fluid Temperature Range -5 ~ 70°C
Ambient Temperature Range 0 ~ 50°C
Rated Voltage 12 or 24 VDC
Power Consumption 4.4 W
Operating Duration Continuous
Body Material PPS
Seal Material PTFE
Other Wetted Materials AL2O3
Notes

Note: Details such as specifications, etc. may be changed without notification.
