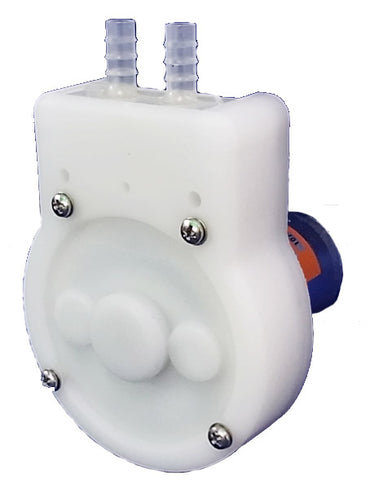

RP-KⅡ Series [Discharge Rate: 50 - 250 mL/min]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Simple design and rugged pump.
  2. Wide ranges of flow levels allow for a wide range of applications to be possible.
  3. Chemical compatibility chart for tubing's: Chemical Compatibility Chart
  4. Please feel free to get in touch with us for more details about this product.

Note: Details such as specifications, etc., may be changed without notice.

EXAMPLE OF APPLICATIONS

Few examples of some compatible applications for this product:

  1. Automatic washing machines
  2. Floor washer applications
  3. Medical device applications
  4. Applications for detergent supplies

Note: Details such as specifications, etc., may be changed without notice.

P-Q CHARACTERISTICS

RP-K2 series P-Q Characteristics

Note 1: Details including specifications, etc. may be changed without notification.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring PumpMechanism of Ring Pump

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-KⅡ
Outer Dimensions 79 × 100 × 100.2~100.27 mm
Pump Method Peristaltic Pump
Type Miniature Peristaltic Pump
Rated Voltage 24 VDC
Body Material Steel or PP
Tube Material Silicone, Norprene®, or TM-15®
Tubing Inner Diameter(mm) 4.8, 6.35, or 6.5 mm
Tubing Outer Diameter(mm) 8.0, 9.52, or 9.9 mm
Self-Priming Possible
Pumped Volume Adjustable Range 50-250 mL/min
Weight Approximately 400 g
Notes
Model Number Discharge Rate (mL/min) Tubing Remarks

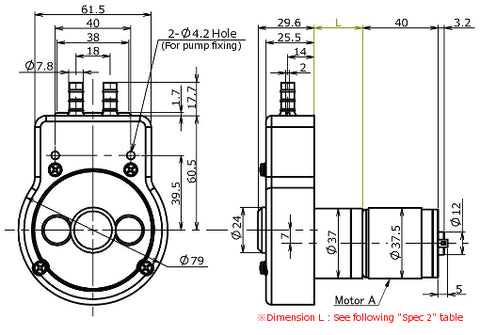

Type ID x OD (mm) Motor Dimensions of "L" mm Rotative Direction Discharge Direction
RP-KⅡ05S-50Z-DC24V 50 Silicone 4.8 x 8.0 Motor A 28.1 CW B
RP-KⅡ05N-50Z-DC24V Norprene® 4.76 x 7.94
RP-KⅡ05W-50Z-DC24V TM-15® 4.8 x 7.9
RP-KⅡ06S-100Z-DC24V 100 Silicone 6.5 x 9.9 Motor B 28.1 CW B
RP-KⅡ06N-100Z-DC24V Norprene® 6.35 x 9.52
RP-KⅡ06W-100Z-DC24V TM-15®
RP-KⅡ06N-150Z-DC24V 150 Norprene® Motor A 25.6 CCW A
RP-KⅡ06W-150Z-DC24V TM-15®
RP-KⅡ06N-200Z-DC24V 200 Norprene®
RP-KⅡ06W-200Z-DC24V TM-15®
RP-KⅡ06N-250Z-DC24V 250 Norprene®
RP-KⅡ06W-250Z-DC24V TM-15®

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Norprene®: Product of Saint-Gobain SA.

Note 3: TM-15®: Product of Mitsuboshi Co. Ltd.
