The RE-C500/501 is a programmable stepper motor controller that is compatible with the Ring Pump RP-TX, RP-HX, RP-QⅡB/C, and RP-QⅢB/C (Stepper) series. The RE-C500/501 provides efficient, programmable control for a variety of pump models and configurations, enhancing both performance and ease of use.
Ring Pump - RP-TX Series
Ring Pump - RP-HX Series
Ring Pump - RP-QⅡ/Ⅲ (Stepper) Series
- The RE-C500 offers seamless control of multiple pumps, allowing a PC to manage a wide range of pump operations.
- Control up to 6 pumps with the RE-C500.
- Expand to 12 pumps by adding a single RE-C501 module, enabling individual control of each pump.
- Program custom pump operation sequences, which can be saved directly to the RE-C500 for autonomous operation—no PC connection required.
- Mix and match different pump types when connecting multiple units, offering flexibility in system design.
Please feel free to get in touch with us for more details about this motor controller for the Ring Pump RP-TX/HX/QⅡ/Ⅲ (Stepper) series.
Note 1: Details such as specifications, etc., may be changed without notice.
Note 2: Aquatech Co., Ltd provides product details and images.
EXAMPLE OF USE
CONNECTION [IN CASE OF USING ONLY ONE RE-C500]
CONNECTION [IN CASE OF ADDITIONAL ONE RE-C501]
Note: Details such as specifications, etc., may be changed without notice.
SPECIFICATIONS
Swipe left to see the remaining contents
Model Number |

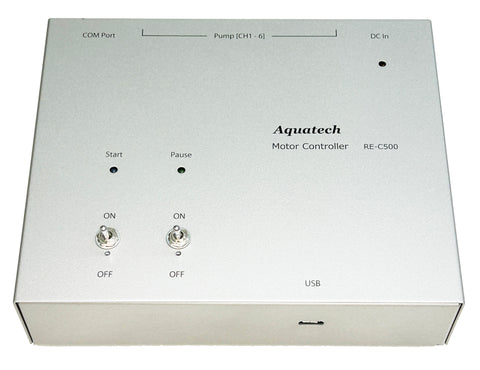

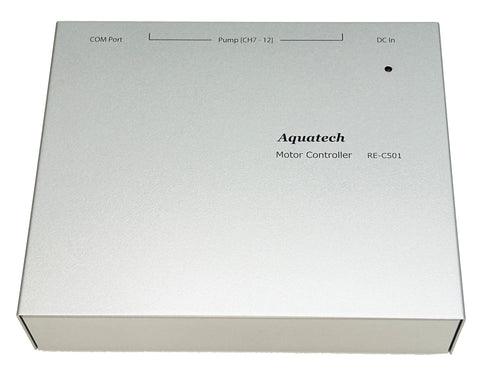

RE-C500: Master RE-C501: Slave for Expansion
|
Outer Dimensions |
180 x 150 x 42 mm
|
Method |
Bipolar Constant Voltage
|
Type |
Motor Controller
|
Power Supply |
RE-C500, RE-C501: DC 5V 3A (AC Adapter Included)
|
Notes |
Applicable Pumps |
RP-TX Series
RP-HX Series
RP-QⅡ/Ⅲ (Stepper) Series |
Connection with the Pump |

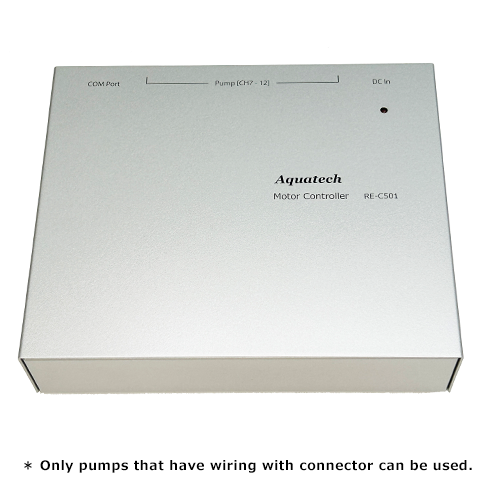

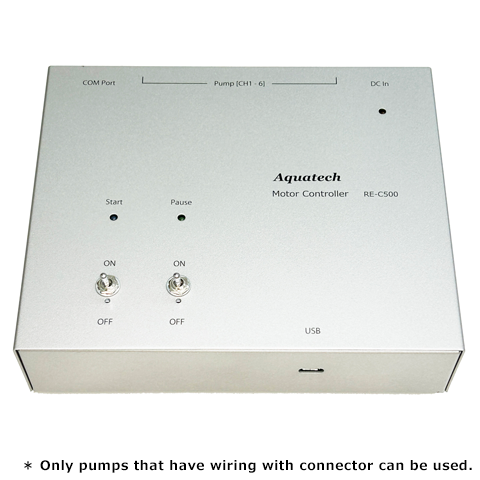

Only pumps with wiring that includes a connector are compatible for use.
(Pumps with wiring that lacks a connector are not compatible.) |
Excitation Mode |
1/4 Micro-Step Driving |
Motor Driving Voltage |
RP-QⅡ/Ⅲ (Stepper): 3.0 V |
RP-HX & RP-TX: 2.6 V |
Accessories |
RE-C500 |
AC Adapter (Input: AC 100 - 240 V 50/60 Hz, Output: DC 5V 3A), USB Memory Stick (Computer Software), & USB Cable (for PC Connection) |
RE-C501 |
AC Adapter (Input: AC 100 - 240 V 50/60 Hz, Output: DC 5V 3A) & COM Port Connection Cable (for Expansion) |
Note: Details such as specifications, etc., may be changed without notice.
|
