  • Metering Pumps - PKP Series (Discharge Rate: 50-500 ??L)
  • Metering Pumps - PKP Series (Discharge Rate: 50-500 ??L)

Metering Pumps - PKP Series (Discharge Rate: 50-500 ??L)

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a diaphragm pump with a maximum pumped volume of 500 ??L. Excellent repeated pumped volume accuracy of 1 %. The adjustable range of pumped volume per shot is 50-500 ??L. Usage precautions for the metering pumps can be viewed here.

  1. Highly Accurate Dispensing
  2. Simply Driven by DC Solenoid
  3. Adjustable Dispensing Volume
  4. Excels in Chemical Resistance

Note 1: Details including specifications may change at anytime without notice.

Note 2: This metering pump is designed for pumping liquid.

TECHNICAL INFORMATION ABOUT METERING PUMPS

  1. Takasago's Solenoid Driven Metering Pump
  2. Metering Pump [Effect of Ambient / Fluid Temperature]
  3. Metering Pump [Standard Test Conditions]
  4. Metering Pump [Other factors that may affect Pumped Volume]
  5. Metering pump [The Effect of Operating Frequency on Repeatability]
  6. Metering Pump [Recommended Installation Position]
  7. Metering Pump [Adjusting the Discharge of the Metering Pumps]

SPECIFICATIONS

Swipe left to see the remaining contents

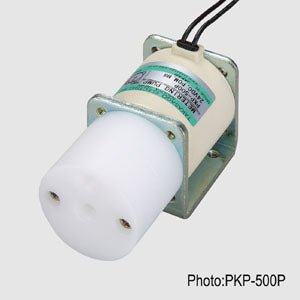

Model Number PKP-500P
Outer Dimensions 36 x 43 x 78 mm
Port Connection M6 or 1/4-28UNF
Fluid Temperature Range 10~40°C
Ambient Temperature Range 10~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 10 W
Pumped Volume Adjustable Range 50~500 µL
Repeat Precision ±1%
Maximum Operating Frequency 2 Hz
Notes
Wetted Materials Body PTFE, POM, or PP
Diaphragm FKM
Check Valve Silicone Rubber

Note: Details including specifications may change without notification.
