Metering Pumps - MCP Series (Discharge Rate: 5-50 µL)

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a diaphragm pump with a maximum pumped volume of 50 µL. The adjustable range of pumped volume per shot is 5 - 50 µL. Usage precautions for the metering pumps can be viewed here.

  1. Highly Accurate Dispensing
  2. Simply Driven by DC Solenoid
  3. Adjustable Dispensing Volume
  4. Excels in Chemical Resistance

Note 1: Details including specifications, etc. may change without notification.

Note 2: This metering pump is designed for pumping liquid.

TECHNICAL INFORMATION ABOUT METERING PUMPS

  1. Takasago's Solenoid Driven Metering Pump
  2. Metering Pump [Effect of Ambient / Fluid Temperature]
  3. Metering Pump [Standard Test Conditions]
  4. Metering Pump [Other factors that may affect Pumped Volume]
  5. Metering pump [The Effect of Operating Frequency on Repeatability]
  6. Metering Pump [Recommended Installation Position]
  7. Metering Pump [Adjusting the Discharge of the Metering Pumps]

SPECIFICATIONS

Swipe left to see the remaining contents

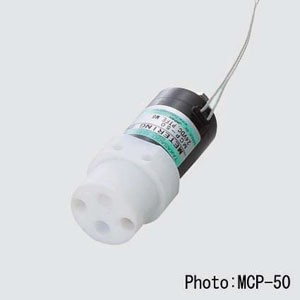

Model Number MCP-50
Outer Dimensions 30 x 26 x 63.5 mm
Port Connection M6 or 1/4-28UNF
Fluid Temperature Range 10~40°C
Ambient Temperature Range 10~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 4.4 W
Pumped Volume Adjustable Range 5-50 µL
Repeat Precision ±1% at 15-50 µL
±2% at 5-15 µL
Weight Approximately 110 g
Maximum Operating Frequency 4 Hz
Insulation Class Class B
Dielectric Strength 1500 VAC for 60 s
Notes
Wetted Materials Body PTFE, POM, or PP
Diaphragm FKM
Check Valve FKM

Note: Details including specifications may change without notification.
