Diaphragm Valve - EXAK Series [2-way NC / Orifice: 0.8 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

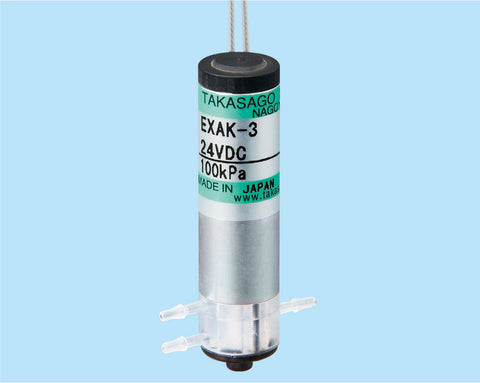

This micro solenoid diaphragm isolation valve is a zero-pumping volume-type of diaphragm isolation valve. PTFE is the material that is used for all of the wetted parts giving it excellent chemical compatibility. The outer dimensions of this valve are very compact at only φ12.0 x H 48.1 mm.

For more details about the EXAK series valve, please feel free to contact us.

Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EXAK-2-M5
Outer Dimensions W17.2 x L39.6 x H50.1 / φ12 x H48.1 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection M5 or Hose barb
Orifice(mm) 0.8 mm
IN Port Pressure -40~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60 °C
Ambient Temperature Range 0~50 °C
Rated Voltage 12 or 24 VDC
Power Consumption 0.94 W
Operating Duration Continuous
Body Material PFA
Seal Material PTFE
Notes
Model Number EXAK-2-M5 EXAK-2-NC
Port Connection M5 Hose Barb

*Note: Details including specifications, etc. may be changed without notification.
