1. The pump head replacement type can discharge up to 10 mL/min.
2. Pump head replacement is a one-touch method using strong magnets.
3. The standard model is compatible with three types of motors: Brushed DC Motors, Brushless DC Motors, and Stepper Motors.
4. This pump uses a brushless DC motor and a stepper motor, which achieved 5,000 hours^* of continuous operation by using needle roller bearings.
5. The pump head can be sterilized.
6. Autoclave (25 minutes at 121℃) 10 times is possible.
   However, pumps using "Transmaster TM-15" tubes can not be autoclaved.
7. Gamma ray sterilization (25 kGy) is possible.

Note: Details such as specifications, etc., may be changed without notice.

^*: Our experimental values use water and do not guarantee the pump's lifespan.

We also have a similar product to this pump, it's called:

1. Ring Pump RP-H Series (Brushed DC Motor Type)
2. Ring Pump RP-H Series (Stepper Motor Type)

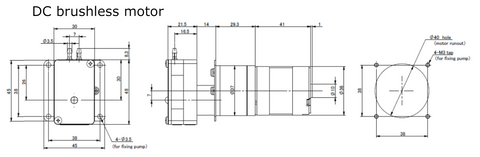

DIMENSIONS

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: For product dimensions please refer to specifications for the wire lengths.

MECHANISM OF THE RING PUMP

For more information:

Mechanism of the Micro Ring Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS
