1. This system ensures a consistent discharge by integrating a ring pump with a DC motor and encoder, paired with the dedicated RE-C300 controller, which precisely halts the motor rotation at an exact integer multiple of one full rotation.
2. Choose from four tubing options: Silicone, Pharmed® BPT, Transmaster TM-15, and SWFT.

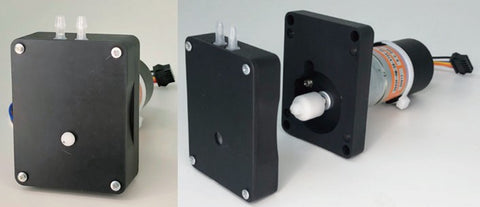

3. The tubing integrated pump head (wetted part) is easily replaceable for convenient maintenance.
4. The pump head is also sterilizable, offering two sterilization methods: autoclaving (121°C for 25 minutes, up to 10 cycles) or Gamma-Ray (25 kGy).

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Pumps using Transmaster TM-15 tubing are not compatible with autoclaving.

MOTOR CONTROLLER - RE-C300

1. A dedicated motor controller designed specifically for the constant discharge pump system.
2. Install the included software from the USB memory onto your computer. By connecting the computer to the RE-C300 via the included USB cable, you can easily control various pump operations.
3. The system allows for programming of multiple pump operation sequences.
4. The motor controller can operate independently, offering stand-alone control and functionality.

Note: Details such as specifications, etc., may be changed without notice.

MECHANISM OF THE RING PUMP

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS
