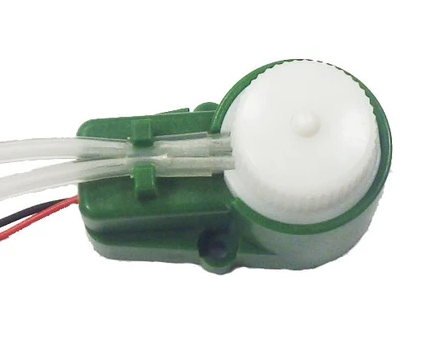

Ring Pump RP-CⅡ Series [Discharge Rate: 1.6 - 2.8 mL/min]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Small in size and in flow rate among multi-purpose pumps in our lineup.
  2. Pump head including tube is replaceable and you have a wide range of usages.

EXAMPLE OF APPLICATIONS

Analytical instruments, medical devices, ink jet printer and many other usages where micro-fluidic control is needed.

STANDARD MODELS

Model Number Voltage V DC Discharge Rate (mL/min) Tubing Usable Voltage Range
Type ID x OD mm
RP-C??1.6S-2Z-DC3V 3 1.6 Silicone 1.6 x 3.2 3 - 5V
RP-C??1.6F-2Z-DC3V PharMed??
RP-C??????1.6R-2Z-DC3V Fluran
RP-C??1.6S-2Z-DC5V 5 2.8 Silicone 1.6 x 3.2 3 - 5V
RP-C??1.6F-2Z-DC5V PharMed??
RP-C??1.6R-2Z-DC5V Fluran

Note 1: Specifications etc. may be changed at any time without notice.

Note 2: PharMed??: Product of Saint-Gobain SA.

P-Q CHARACTERISTICS

P-Q Characteristics RP-C3 Series

Note 1: It will change by the material or ID of the tube or the motor.

Note 2: P-Q Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring Pump??Mechanism of Ring Pump

Mechanism of Ring Pump

*Note: Visual diagram above is from Aquatech Co., Ltd.?? ??Aquatech Co., Ltd. logo

??

  1. You can learn about the Mechanism of the micro peristaltic pump here.
  2. Please feel free to contact us for more information about this product.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number RP-CⅡ
