Diaphragm Valve - EXAKN Series [2-way NC / Orifice: 0.8 mm]

$0.00 USD

Variation
Quantity
INQUIRY
pdfpdfView Diaphragm Valve - EXAKN Series [2-way NC / Orifice: 0.8 mm] Drawing PDF

FEATURES / CHARACTERISTICS

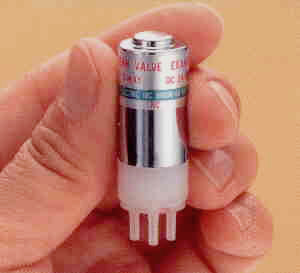

This micro solenoid diaphragm isolation valve, the EXAKN series is a zero-pumping volume-type of diaphragm isolation valve. FFKM is used for the seal part and with this the valve has an increased sealing ability. The outer dimensions of this valve are very compact at only φ14.0 x H 42.3 mm.

For more details about this valve, please feel free to contact us for more information.

Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EXAKN-2F-NC
Outer Dimensions 14 x H44 / φ14 x H42.3 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection M5 or Hose barb
Orifice（mm） 0.8 mm
IN Port Pressure -40~300 kPa
OUT Port Pressure (NC) 0~150 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 1.2 W
Operating Duration Continuous
Body Material ETFE
Seal Material FFKM
Other Wetted Materials PTFE or PVDF
Notes
Model Number EXAKN-2F-NC EXAKN-2-NC
Port Connection M5 Hose Barb

*Note: Details including specifications, etc. may be changed without notification.
