  • Diaphragm Valve - EXAK Series [3-way / Orifice: 0.8 mm]
  • Diaphragm Valve - EXAK Series [3-way / Orifice: 0.8 mm]

Diaphragm Valve - EXAK Series [3-way / Orifice: 0.8 mm]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView EXAK Series [3-way / Orifice: 0.8 mm] Drawing PDF

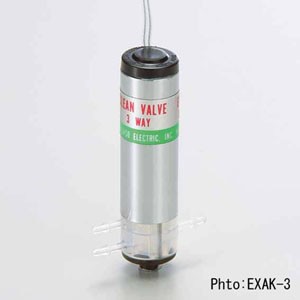

This micro solenoid diaphragm isolation valve is a zero-pumping volume-type of the diaphragm isolation valve. PTFE is the material used for all of the wetted parts giving it excellent chemical compatibility. The outer dimensions of this valve are very compact at only φ12.0 x H 48.1 mm.

  1. Zero-Pumping Volume-Type

Please feel free to contact us for more details about the EXAK series valve.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EXAK-3
Outer Dimensions W17.2 x L39.6 x H50.1 / 12 x H48.1 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection M5 / Hose barb
Orifice（mm） 0.8 mm
IN Port Pressure -40~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 0.94 W
Operating Duration Continuous
Body Material PFA
Seal Material PTFE
Notes
Model Number EXAK-3 EXAK-3-M5
Port Connection Hose Barb M5

Note: Details such as specifications, etc., may be changed without notice.
