Disposable Fluidic Cartridge Valve (Patented)

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Replaceable and autoclavable valve body.
  2. The valve body can be easily removed from and attached to the solenoid by magnets.
  3. This valve is diaphragm-isolated. Applicable for a broader range of chemicals and higher fluid pressures/temperatures than pinch valves.
  4. Ideal to use for applications where high cleanliness is a requirement, for example, regenerative medicine.
  5. The free tubing direction allows the cartridge can freely rotate.
  6. The actuator and valve body are sold separately.

For more details or any questions about this Cartridge Valve, please don't hesitate to contact us.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF THE DISPOSABLE FLUIDIC CARTRIDGE VALVE


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Method Solenoid Diaphragm Isolation Valve
Body Material PPS or PEEK
Seal Material FKM, FFKM, or EPDM
Other Wetted Materials PTFE
Notes

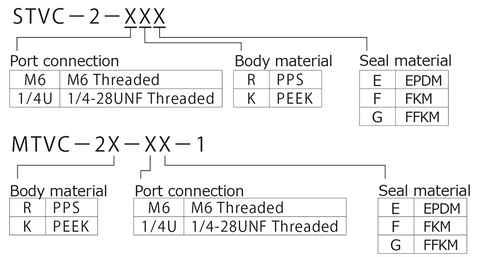

Valve Body Model STVC-2-XXX MTVC-2X-XX-1
Compatible Actuator MTV-2-C-1 MTV-2-C
Orifice 1.2 mm 2 mm

Note: Details such as specifications, etc., may be changed without notice.
