Disposable Fluidic Cartridge Valve (Patented)

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Replaceable and autoclavable valve body.

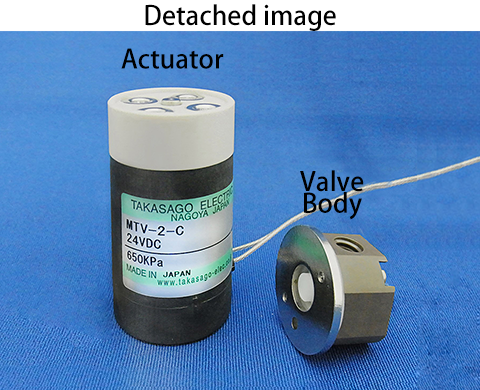

  2. The valve body can be easily removed from and attached to the solenoid by magnets.
  3. This valve is diaphragm-isolated. Applicable for a broader range of chemicals and higher fluid pressures/temperatures than pinch valves.
  4. Ideal to use for applications where high cleanliness is a requirement, for example, regenerative medicine.
  5. The free tubing direction allows the cartridge can freely rotate.

For more details or any questions about this Cartridge Valve, please don't hesitate to contact us.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF THE DISPOSABLE FLUIDIC CARTRIDGE VALVE


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-2-C
Method Solenoid Diaphragm Isolation Valve
Type 2-way
Body Material PPS or PTFE
Seal Material FKM
