Pinch Valve - PW Series
CHARACTERISTICS
This is a solenoid pinch valve with an open-framed actuator. This valve has the options of I.D. of 0.8 to 6.0 mm and O.D. of 2.4 or 8.0 mm.
Please feel to reach out to contact us for more information about this product, the Pinch Valve - PW series.
SPECIFICATIONS
| Method | Solenoid Pinch Valve |
|---|---|
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure |
0 ~ 150 kPa
|
| Tubing Inner Diameter (I.D.) |
0.8 - 6.0 mm
|
| Tubing Outer Diameter (O.D.) |
2.4 - 8.0 mm
|
| Rated Voltage | 3, 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 2.8 - 7.5 W |
| Operating Duration | Continuous |
| Outer Dimensions | W39.2-40 x L26-36 x H54.4-88.5 mm |
| Tube Material |
Silicone |
| Ambient Temperature Range | 0～50℃ |
Note: Details including specifications, etc. may be changed without notification.
List of Products
-
Pinch Valve - PW Series [Tubing I.D.: 0.8 mm / O.D.: 2.4 mm]
![Pinch Valve - PW Series [Tubing I.D.: 0.8 mm / O.D.: 2.4 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PW_Series_d9e229e9-3ac7-47ce-8c4e-8a2663926611_400x.jpg?v=1606180535)
Pinch Valve - PW Series [Tubing I.D.: 0.8 mm / O.D.: 2.4 mm]
View details
-
Pinch Valve - PW Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm]
![Pinch Valve - PW Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PW_Series_ace51dde-17ed-4674-aea7-39b23e6144a7_400x.jpg?v=1606180537)
Pinch Valve - PW Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm]
View details
-
Pinch Valve - PW Series [Tubing I.D.: 1.6 mm / O.D.: 3.2 mm]
![Pinch Valve - PW Series [Tubing I.D.: 1.6 mm / O.D.: 3.2 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PW_Series_large_ecd57c80-ad57-4f16-90ea-60b104737cba_400x.jpg?v=1616434996)
Pinch Valve - PW Series [Tubing I.D.: 1.6 mm / O.D.: 3.2 mm]
View details
-

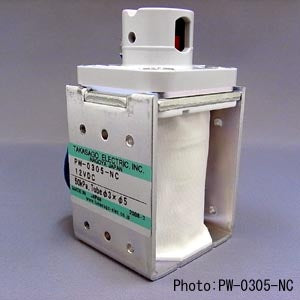

Pinch Valve - PW Series [Tubing I.D.: 3.0 mm / O.D.: 5.0 mm]
![Pinch Valve - PW Series [Tubing I.D.: 3.0 mm / O.D.: 5.0 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PW_Series_400x.jpg?v=1606180539)
Pinch Valve - PW Series [Tubing I.D.: 3.0 mm / O.D.: 5.0 mm]
View details
-
Pinch Valve - PW Series [Tubing I.D.: 6.0 mm / O.D.: 8.0 mm]
![Pinch Valve - PW Series [Tubing I.D.: 6.0 mm / O.D.: 8.0 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PW_Series_aafceb02-81ae-4e69-b86e-45c6c0a95297_400x.jpg?v=1605859830)
Pinch Valve - PW Series [Tubing I.D.: 6.0 mm / O.D.: 8.0 mm]
View details
