Pinch Valve - PW Series [Tubing I.D.: 3.0 mm / O.D.: 5.0 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PW Series [Tubing I.D.: 3.0 mm / O.D.: 5.0 mm] Drawing PDF

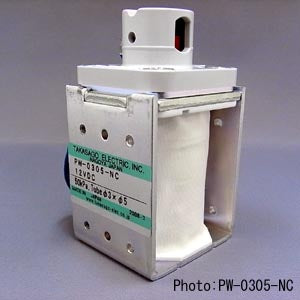

This is the PW series, it is a solenoid pinch valve with an open-framed actuator.

Please feel free to contact us for more details about this Solenoid Pinch Valve - the PW series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PW-0305-NC / PW-0305-NO
Outer Dimensions W40 x L36 x H70.5-74.2 mm
Method Solenoid Pinch Valve
Type 2-way NC or 2-way NO
IN Port Pressure 0~50 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 7.5 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 3.0 mm
Tubing Outer Diameter（mm） 5.0 mm
Notes

Note: Details such as specifications, etc. may be changed without notification.
